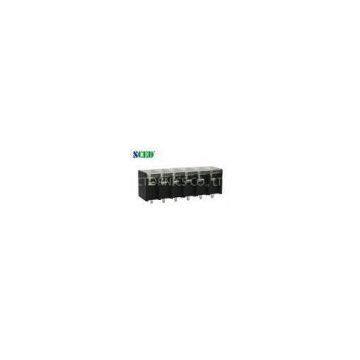

Automatic Control Barrier Terminal Block Pitch 11.00mm , 300V 20A , 2P - 24P

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCED		Place of Origin	China
Model Number	TB1100-07-C

Delivery Time:7-20 working days
Certification:UL, CE

Applications:

PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?

Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?

Elevator,?etc..

Automatic Control Barrier Terminal Block Pitch 11.00mm , 300V 20A , 2P - 24P

■Right?angle?wire?inlet;??□Vertical?wire?inlet;??□45?degree?wire?inlet

■Single?Level;??□Double?levels;??□Triple?levels

Standard?color:?Black.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?color?

you?want.

Barrier?terminal?blocks,?Power?terminal?blocks,?Electrical?terminal?Blocks,?Terminal?blocks?suppliers

How?to?order:

Parameter?and?Drawing?Specifications:

UL?Technical?Data	B??????????C??????????D
Rated?Voltage?/?Current??????????????V/A	???300/?20?????????????????300?/?10????????????????????
Wire?Range???????????????????????AWG	????10-24????????????????????10-24
IEC?Technical?Data
Overvoltage?Category	???????Ⅲ?????????Ⅲ?????????Ⅱ
Contamination?Class	?3??????????2??????????2
Rated?Voltage?/?Current??????????????V/A	??630?/?41????800?/?41??????1000?/?41
Rated?Surge?Voltage?????????????????KV	???????6???????????6?????????6
Rated?Connecting?Capacity???????????mm2	6
Material
Insulation?Material?/?Inflammability?Class	PBT?/?UL94,?V-0
Terminal?/?Plating	Brass?Tin?/?Plated
Screw?/?Plating	Steel?/?Nickel?Plated
Other?Data
PCB?Hole?Diameter??????????????????mm	??????????????φ2.5
Stripping?Length????????????????????mm	???????????????11-12
Screw?/?Torque????????????????????/?lbf.in	????????????M?4?/?10-12

Competitive?Advantage:

1.?Stable?good?quality

2.?Competitive?price

3.?Quickly?response

4.?Full?range?products?for?selection

5.?Flexible?to?design?the?exact?part?per?customers’?demand
