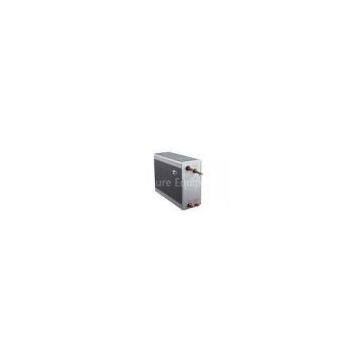

Commercial steambath generator 400v , 6kw for Turkish bath

Brand Name	KSA		Place of Origin	China
Model Number	KSA-E60

Delivery Time:1-3 workdays
Certification:CE

KSA-E60 steam generators 6.0kw/220v-230v/400v ?for Turkish bath with automatic flushing?

Quick Detail:

Type: Wet Steam Sauna control panel: digital and optional Power output: 6.0kw voltage: 110V/220V/400V Main Material: stainless steel tank, galvanizing and powder coated shell Color: grey Current: 27.3A/9.1 phase: 1/3 Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off Shape: Cuboid Size: 405x150x280mm Room volume(cubic meter): 5~7 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree

Commercial Sauna Steam Generator 400v , 6kw steambath generator

Auto-flushing function:

Shenzhen TOLO Leisure equipment have a strong team to research and development. The function Auto-flushing after power off greatly reduce water scale’s development. Because water scale is soft at its beginning, we can take advantage of this period to clear them away.

Description:

There are so many outstanding features of our KSA-E steam generators. Here we introduce our proud drain valve to you.

KSA-E is with heavy flow drain valve by ourselves-develop. Even there have some water scale inside the tank; it also can’t hider the water outlet and will not have the situation about blocking the pipe.

Auto-flushing after power off greatly reduce water scale’s development. Because water scale is soft at its beginning, we can clear them away. Even after many years, there have escaped criminal. Don’t worry, we have 8kg heavy weight class drain valve, You will never have block problem.

Normal others drain valve caliber looks like wide .In fact it is narrow at the middle flow channel. It is easy to cause pooly drained. Drainage effect is not good. One excellent steam generator must have an excellent drain valve. We Shenzhen TOLO Leisure equipment will help you with our rich experience.

Applications:

For steam bath, Turkish bath and public sauna or hotel.

Specifications:

Model	Power KW	Room volume (m3)	Power requirements?????????? 50/60Hz	Current?(A)	Power??????? wire (Copper)????????? N*mm2	Dimensions ?CM	Packing dimensions CM	Gross weight kg
KSA-E60	6.0	5~7	220-240V~	27.3	3*4.0	42.5*16*30	54.5*21.5*42	10.5~11
380-415V3N~	9.1	5*1.5

Control panel with Digital display Control panel used the advanced inducing technology Controls sauna temperature 35 degree to 55 degrees Controls sauna time 1 minute to 60 minutes or long time Intelligent to heat by segment Intelligent to fill water with steam Intelligent to do a self flushing cycle Light can be connected to controller Intelligent to indicate fault with the code Can pause at working To show CH can working for long Intelligent to save two sets of temperature, can individual set time by memory Automatically shuts down when water level is too low Temperature high limit switch Waterproof grade: IPX5 Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off

?????? We will provide some spare parts to our customer as replacement.

KSA-E60

Competitive Advantage:

We have another Secret Weapon to prevent scale build. Please contact us to know more.
