Innovative Cooling Heating System Energy Saving Up Capillary Tube Mats

SINOLANC RADIANT CEILING HEATING & COOLING

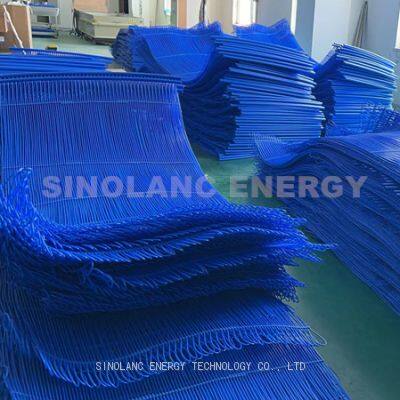

Capillary tube mat system is an innovative technology developed to replace the conventional radiator heating and air conditioning systems. The heart of system lies in the capillary mats that contain thin polypropylene tubes through which water constantly flows. To heat or cool rooms, hot or cold water runs through the capillary tube mats system to exchange heat with the space air by radiation. They ensure a quick dissipation of the cooling load or a quick supply of the heat requirement.

Owing to their small diameter of only 4.3mm and good flexibility, Sinolanc capillary mats can be embedded close to the surface of ceilings, floor and walls, transforming these building components into easily adjustable cooling and heating surfaces.

Due to the large exchange surfaces, large energy quantities can be transmitted with low temperature differences between the active room surface and the room air.

This means that the system can operate at flow temperatures that are 8-10℃ lower with the same heat emission to the room. For heating purposes, the hot water is usually supplied at 28-32℃, with the return water temperature at 26-30℃. For cooling purposes, , the flow temperature of 16-18℃ with the surface temperature of 17-19℃.

Definition and Working Principle of Capillary Tube Mats

The capillary tube mat system is a system that uses fine capillary tubes for radiant heating and cooling. It uses water as a medium to evenly distribute temperature, achieving an energy-efficient and comfortable indoor environment.

System Components and Structure

• Capillary tube mats/panels (customized according to specifications and spacing)

• Supply and return water pipelines

• Control system (thermostatic valves and sensors)

• Heat pump systems (ground-source/air-source heat pumps

Capillary Tube Mats Radiant Systesm Working Principle:

· The capillary tube mats are installed close to the surface (ceilings, floors, or walls), turning these building components into energy-efficient heating or cooling surfaces.

· The system operates at low temperatures, meaning it can transfer energy effectively with minimal temperature changes, making it more energy-efficient than traditional systems.

· Radiation is the primary method of heat exchange, mimicking the way natural heat balance is regulated in living organisms (like the warmth of the sun). This provides a more comfortable and even temperature distribution throughout the space.

· The water in the capillary tubes is circulated by an energy carrier (e.g., a heat pump), maintaining an efficient temperature and ensuring optimal performance.

• Energy Efficiency: Low-temperature heating and high-temperature cooling can save 30%-50% energy.

• Comfort: Uniform temperature, no airflow sensation, no noise, providing a comfortable ergonomic experience.

• Flexible Installation: The system can be installed on ceilings, walls, or floors to meet various spatial requirements.

• High-Quality Materials and Durability: Made with high-quality PPR material, providing strong corrosion resistance. Each capillary tube network undergoes 20kg pressure testing for over 20 minutes.

• Silent Operation: No fan noise, ensuring silent operation, suitable for noise-sensitive environments such as hospitals and schools.

Application:

Residential buildings, offices, hospitals, schools, hotels, and industrial facilities.

About US- Sinolanc Energy

Sinolanc is a leading Chinese manufacturer specializing in the development and production of capillary tube mats for radiant heating and cooling systems. With over 16 years of experience, we utilize high-quality PPR raw materials and advanced German automation technology to ensure exceptional product quality and performance.

In addition to manufacturing, Sinolanc offers comprehensive Capillary Tube Mats System Solutions, including system design, installation guidance, and after-sales support. Our solutions are tailored for energy-efficient and sustainable applications in residential, commercial, and industrial environments, delivering uniform temperature control, silent operation, and significant energy savings.

As China's largest capillary tube mats manufacturer, Sinolanc is committed to providing customized solutions, outstanding quality, and exceptional customer support to clients worldwide.

If you are intersted in knowing more information about our product and serice or have a specific projects, please feel free to contact us via whatsapp: +86 18920696269 or email: moon_energy@126.com
