Capillary Tube Mats PLASTER ON GYPSUM BOARD Ceiling Installation

Capillary Tube Mats PLASTER ON GYPSUM BOARD Ceiling Installation

Capillary Tube Mats Technical Information:

Capillary Tube Mats Models We produced:

Capillary Tube Mats PLASTE GYPSUM BOARD

The capillary tube mats are plastered underneath a suspended gypsum board ceiling.

Mat distributor pipes and supply lines are accommodated in the void of the suspended ceiling.

The capillary tube mats, welded together to a hydraulic circuit, are connected to the supply and return lines. The ceiling void can also be used for further installations.

The capillary tube mats run through a slot in the gypsum board panel to the room side and are attached there with stainless steel clips or galvanised staples.Plaster, for example, is applied using the spraying method up to a layer thickness of 15 mm.

1. Install a suspended gypsum board ceiling with sufficient void space to accommodate distributor pipes and supply lines.

2. Ensure the ceiling structure can support the additional weight of the capillary tube mats and the plaster layer.

1. Mount the supply and return lines for capillary tube mats in the ceiling void, leaving enough space for connections.

2. Secure the two mat distributor pipes of the rolled-up capillary tube mat to the substructure profiles using stainless steel clips or galvanized staples, then connect them to the supply and return lines.

3. Guide the capillary tube mats through a pre-cut slot in the gypsum board panel to the room side.

4. Weld the capillary tube mats together to form a closed hydraulic circuit. Ensure all connections are secure and leak-proof.

Perform a leak test at 10 bar, keeping the system filled with water throughout the installation to detect potential damage.

1. Close the ceiling structure with standard gypsum board panels, fixing them edge to edge

2. Apply a primer coat evenly within 48 hours before plastering to to enhance adhesion.

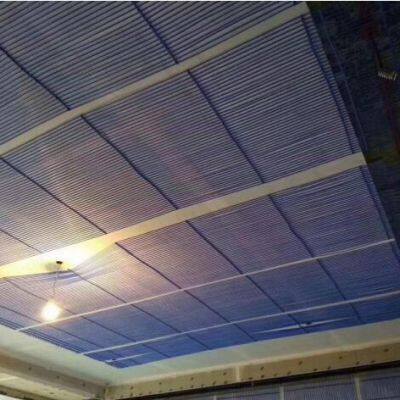

1. Roll out the capillary tube mats and attach them tightly to the underside of the gypsum board over the entire surface and fasten them using stainless steel or galvanized staples.

2. Apply a 10-15 mm plaster layer using professional techniques, ensuring even coverage.

3. Ensure the plastered surface is properly separated from adjacent building components to prevent cracks due to thermal expansion. Allow the plaster to dry and cure properly before proceeding with final ceiling finishes.

1. Conduct a pressure test to verify the integrity of the hydraulic system.

2. Inspect the installation to ensure proper attachment and finishing.

3. Once confirmed, complete the ceiling construction and proceed with system commissioning.
