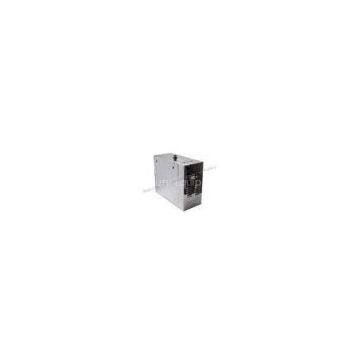

Mirror-polished stainless steel Commercial Steam Generator 4kw 230v for steam bath

Brand Name	KSA		Place of Origin	China
Model Number	KSA-S40

Delivery Time:1-3 workdays
Certification:CE

Mirror-polished stainless steel KSA-S40 steam generators 4.0kw/220v-230v / 50~60Hz with fault diagnosis for steam bath???????????????

Quick Detail:

Type: Wet Steam Sauna control panel: digital and optional Power output: 4.0kw voltage: 220~240V Main Material: stainless steel tank and Mirror-polished stainless steel shell Color: stainless steel Current: 18.2A phase: 1 Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off Shape: Cuboid Size: 405x150x280mm Room volume(cubic meter):3~5 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree

KSA-S steam generators feature an advanced electronic control with fault diagnostics having different code to show each situation of the generators. Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.

Mirror-polished stainless steel shell luxurious appearance! KSA-S steam generators have middle size to install easily. They have 304 stainless steel water tanks, 304 stainless steel heating element with high quality Teflon to prevent water scale.

KSA-S series steam generator has KSA-S 3.0kw, KSA-S 4.0kw, KSA-S 5.0, KSA-S 6.0kw, KSA-S 7.0kw, KSA-7.5kw, KSA-S 8.0kw, KSA-S 9.0kw, KSA-10.5kw, KSA-S 12.0kw, KSA-S 15.0kw, KSA-S 18.0kw, KSA-S 22.0kw, KSA-S 24.0kw.

Mirror-polished stainless steel steam generators 4kw 230v for steam bath

Description:

The KSA-S steam generator is with new electronic touch screen control kit and new mirror-polished stainless steel 304# steam head. Full body made of stainless steel, durable and luxurious.

1. The KSA Elegance touch screen control kit has 6 bottoms to set working stages. Working time 1-60mins can be adjusted or long , the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).KSA-S steam generators feature an advanced electronic control with fault diagnostics having different code to show each situation of the generators. Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.

2. KSA-S steam generators have an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner. At the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.
?

3. Each KSA-S steam generator has 3 groups of heating elements to provide heating by segment. From cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort.
?

4. The origins of the steam bath come from the Roman bath, which began during the height of the Roman Empire. A steambath is an ancient type of bath, first made popular by the ancient Greeks and Romans. Ancient Roman baths served many community and social functions within Roman society. Everyone in Rome used Roman public baths, regardless of socioeconomic status.

Applications:

For 3~5m3 residential and commercial steam baths

A few?minutes?of?steam daily, in the comfort?of your own home, is an opportunity to?improve?your?overall well-being in every way.

A daily steam bath is a remarkable way to indulge yourself. It causes the?perspiration that is the single healthiest thing you can do for your skin. Stress and?negativity?quickly dissipate in the soft clouds of intense yet comforting heat.

Specifications:

KSA-S series steam generator has KSA-S 3.0kw, KSA-S 4.0kw, KSA-S 5.0, KSA-S 6.0kw, KSA-S 7.0kw, KSA-7.5kw, KSA-S 8.0kw, KSA-S 9.0kw, KSA-10.5kw, KSA-S 12.0kw, KSA-S 15.0kw, KSA-S 18.0kw, KSA-S 22.0kw, KSA-S 24.0kw.

Parameters:

Model

Power KW

Room volume (m3)

Power requirements?????????? 50/60Hz
