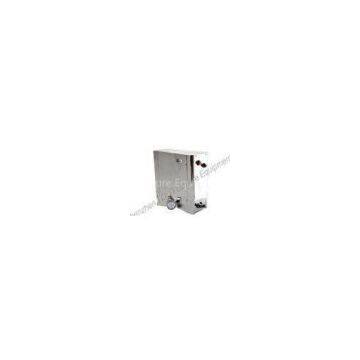

24kw electrical steam shower generator automatic 230v for steam rooms

Brand Name	KSA		Place of Origin	China
Model Number	KSA-S240

Delivery Time:1-3 workdays
Certification:CE

Continuous steam output Mirror-polished stainless steel KSA-S240 steam generators 24.0kw/220v-230v or 400v/ 50~60Hz for steam bath? ultra quiet steam generator??

Quick Detail:

Control panel: Touch screen digital and optional Type: Wet Steam Sauna Power output: 24.0kw voltage: 380~400V phase: 3 Current: 36.4A Main Material: stainless steel tank and Mirror-polished stainless steel shell Color: stainless steel Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off Shape: Cuboid Size: 51*18.5*46mm Room volume(cubic meter):22~30 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree

24kw electrical steam generator automatic 380v for steam rooms

Power:24.0kW, voltage: 380V, phase:3 Two controllers: KSA-elegance Operates machine for 1~60 minutes before turning off Ultra quiet steam generator Super duty model Controls sauna temperature Temperature high limit switch With cleaning and draining function Rapid steam function Stainless steel constructions Automatically shuts down when water level is too low

Power flush pressurized inner tank system is one of the host advantages of KSA-S steam generators. The other main functions are: pressure relief automatically, thermal overload safety cut out, self-diagnose message and steam fast response etc.

Description:

The features of KSA-S240 24.0kw steam generator:

Heat element material: stainless steel 304

Water tank material: stainless steel 304

Power: 24.0kw

Room volume use: 22~30cubic meter volume

Recommend features: auto drain, auto turn on/ turn off, auto pressure relief, auto cut out when over heat, auto flashing etc

For Steam Spa’s, Showers, Baths, Shower cabins

Enjoy the elegant and professional steam generator designed to work in a residential or commercial environment.

Durable metal construction Superior heating elements – improved energy efficiency Waterproofed link cable for control panel(s) Intelligent touch screen control kit Electronic thermostat Ultra quiet steam generator Rapid steam function Continuous steam output Intelligent to indicate fault Have pause function Intelligent to save two sets of temperature, can individual set time by memory Light can be connected to illumine, water inflow to magnetize and filtrate etc. Intelligence sequential heating, automatic to turn off and wash, with pressure to drain.

1 set steam generator contains:

1 unit KSA-S 24.0kw steam generator mirror-polished stainless steel shell with full sus body

1 unit KSA elegance touch screen control kit

2?unit mirror-polished stainless steel steam diffusers

1 unit power flush pressurized inner tank system

1 unit electronic thermostat

1pcs water proof control wire

The KSA-S steam generator is with new electronic touch screen control kit and new mirror-polished stainless steel 304# steam head. Full body made of stainless steel, durable and luxurious.

Sequential heating to save energy and rapid steam function:

Each KSA-S steam generator has 3 groups of heating elements to provide heating by segment. From cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort. The steam will fast start in second, not minute.
?

1. The KSA Elegance touch screen control kit has 6 bottoms to set working stages. Working time 1-60mins can be adjusted or long , the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).KSA-S steam generators feature an advanced electronic control with fault diagnostics having different code to show each situation of the generators. Safety features include boil dry protection, over heating protect and power flush pressurized inner tank system.

2. KSA-S steam generators have an automatic drain down with a self flushing cycle to dump the boiler contents in a controlled manner. At the
