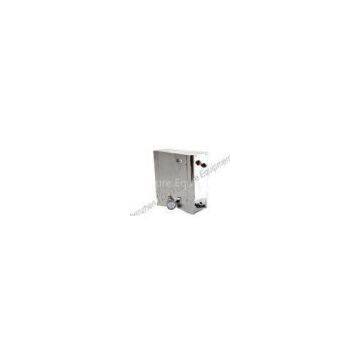

Stainless steel Sauna Steam Generator 7kw 400v with boil dry protection

Brand Name	KSA		Place of Origin	China
Model Number	KSA-S70

Delivery Time:1-3 workdays
Certification:CE

Mirror-polished stainless steel KSA-S70 steam generators 7.0kw/220v-230v or 400v/ 50~60Hz with boil dry protection for steam bath

Quick Detail:

Control panel: Touch screen digital and optional Type: Wet Steam Sauna Power output: 7.0kw voltage: 220~240V/380~400V phase: 1/3 Current: 31.8A/11.4A Main Material: stainless steel tank and Mirror-polished stainless steel shell Color: stainless steel Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off Shape: Cuboid Size: 475*185*450mm Room volume(cubic meter):5.5~8.5 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree

Boil dry protection is one of the host advantages of KSA-S steam generators. The other main functions are: pressure relief automatically, thermal overload safety cut out, self-diagnose message and steam fast response etc.

KSA-S steam generators have middle size to install easily.

Stainless steel Sauna Steam Generator 7kw 400v with boil dry protection

Description:

The features of KSA-S70 7.0kw steam generator:

Heat element material: stainless steel 304,3pcs 2.0kw and 1pcs 1kw

Shell material: Mirror-polished stainless steel shell 304

Water tank material: stainless steel 304

Power: 7.0kw

Room volume use: 5.5~8.5cubic meter volume

Recommend features: auto drain, auto turn on/ turn off, auto pressure relief, auto cut out when over heat, auto flashing etc

1 set steam generator contains: 1 unit KSA-S 7.0kw steam generator mirror-polished stainless steel shell and full sus body

???????????????????????????????? 1 unit KSA elegance touch screen control kit

???????????????????????????????? 1 unit mirror-polished stainless steel steam head

???????????????????????????????? 1 unit safety valve

???????????????????????????????? 1 unit temperature sensor

???????????????????????????????? 1pcs control wire

The KSA-S steam generator is with new electronic touch screen control kit and new mirror-polished stainless steel 304# steam head. Full body made of stainless steel, durable and luxurious.

Intelligent to save two sets of temperature, can individual set time by memory Light can be connected to illumine, water inflow to magnetize and filtrate etc. Intelligent to heat by segment, fill water with steam, automatic to turn off and wash, with pressure to drain. To show CH can working for long Intelligent to indicate fault Have pause function

1. The KSA Elegance touch screen control kit has 6 bottoms to set working stages. Working time 1-60mins can be adjusted or long , the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).KSA-S steam generators feature an advanced electronic control with fault diagnostics having different code to show each operation of the generators. Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.

2. KSA-S steam generators have an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner. At the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.
?

3. Each KSA-S steam generator has 3 groups of heating elements to provide heating by segment. From cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort.

Applications:

For 5.5~8.5m3 residential and commercial steam baths

A few?minutes?of?steam daily, in the comfort?of your own home, is an opportunity to?improve?your?overall well-being in every way.

A daily steam bath is a remarkable way to indulge yourself.

It causes the?perspiration that is the single healthiest thing you can do for your skin. Stress and?negativi
