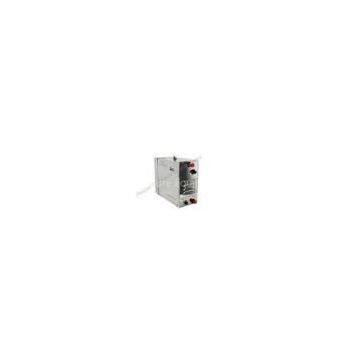

24kw Commercial Electric Steam Generator Portable for Steam Rooms

Brand Name	KSA		Place of Origin	China
Model Number	KSA-E240

Delivery Time:1-3 workdays
Certification:CE

Heavy-duty stainless steel steam generators KSA-E180? ?18.0kw/400v/3phase with over-heat protect

Quick Detail:

Full body made of mirror-polished Stainless Steel stainless steel for heavy duty!

Type: Wet Steam Sauna control panel: digital and optional Power output: 24.0kw voltage: 380V~400V Main Material: stainless steel tank and shell Color: stainless steel Current:36.4A phase: 3 Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off Shape: Cuboid Size: 510*185*460mm Room volume(cubic meter):22~30 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree Electric Heater Type: hot steam Heating Element: 304 stainless steel with Teflon Installation: Ceiling,Freestanding,Wall Mounted Certification: CE,RoHS Function: Adjustable Thermostat,Lighting,Overheat Protection,Remote Controlled,Ventilation,time setting Use:steam bath/sauna Place of Origin: Guangdong, China (Mainland) Brand Name: KSA Model Number: KSA-E240 Power: 24kw voltage: 400v phase: 3 suit for steam room: 22-30CBM unique function: Auto-turn off,Auto descaling, heat element: SUS304 shell: 1mm thick SUS304

24kw Commercial Sauna Steam Generator portable for steam rooms

Description:

mirror-polished Stainless Steel ?body to prevent rust and looks luxurious.

The steam generator is intelligent to heat by segment and can save sets of temperature and individual set time by memory the water in the steam generator boiler is held at around 80 degrees until the steam on demand button located inside the steam room is pushed by the customers - then steam will be delivered by the generator within a few seconds, saving energy and costs during quieter periods of operation. Intelligent to indicate fault with the code. To show CH can work for long and pause, fill water with steam, automatic to turn off, a self flushing cycle ,with pressure to drain. Heating by segment: there has 3 groups of heating elements inside the water tank to provide sequential heating (from cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations. KSA-E steam generators feature an advanced electronic control with on board diagnostics having a series of LEDs lights to show each operation of the generator. The controller has 6 bottoms to set working stages. working time 1-60mins can be adjusted or long ,the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree). At last, the drain valve start and the fresh water inlet valve open to give a period of continuous washing and draining. Washing and draining the generator reduces water scale, cooling the elements for their useful life be longer.
?

Applications:

For commercial steam room/ sauna bath

Specifications:

Please see the details for your installment reference:

Control panel with Digital display Control panel used the advanced inducing technology Controls sauna temperature 35 degree to 55 degrees Controls sauna time 1 minute to 60 minutes or long time Intelligent to heat by segment Intelligent to fill water with steam Intelligent to do a self flushing cycle Light can be connected to controller Intelligent to indicate fault with the code Can pause at working To show CH can working for long Intelligent to save two sets of temperature, can individual set time by memory Automatically shuts down when water level is too low Temperature high limit switch Waterproof grade: IPX5 Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off

We will provide some spare parts to our customer as replacement.

Model

Power KW

Room volume (m3)

Power requirements??????
