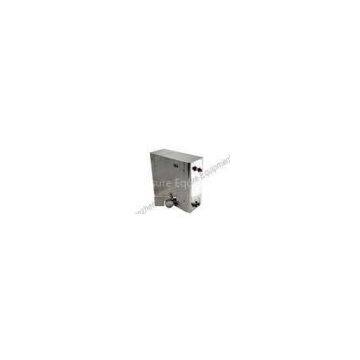

2 Steam outlet Commercial Steam Generator 16kw 400v 3 phase with waterproof control system

Brand Name	KSA		Place of Origin	China
Model Number	KSA-S160

Delivery Time:1-3 workdays
Certification:CE

2 steam outlet mirror-polished stainless steel steam generators 16.0kw/400v/3phase with waterproof control system for home and commercial use

Quick Detail:

Control panel: Touch screen digital and optional Type: Wet Steam Sauna Power output: 16.0kw voltage: 380~400V phase: 3 Current: 23.5A Main Material: stainless steel tank and Mirror-polished stainless steel shell Color: stainless steel Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off Shape: Cuboid Size: 475*185*450mm Room volume(cubic meter):14~19 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree

KSA-S 16.0kw steam generator with 2pcs steam heads/ 2 steam outlet.

We produce steam generator over 10years! Intelligent sequential heating, fill fresh cold water without pause, automatic to turn off, a self flushing cycle , with pressure to drain. Exclusive microprocessor operating system Precision temperature probe for optimal steamroom temperature control Removable and serviceable industrial strength heating elements Intelligent to indicate fault with the code. To show CH can working for long Can pause at working Light can be connected to controller, water inflow to magnetize and filtrate etc. Intelligent to save two sets of temperature, can individual set time by memory

2 Steam outlet Sauna Steam Generator 16kw 400v 3 phase with waterproof control system

Description:

FUNCTIONS AND OPERATION

DISPLAY PANNEL: KSA elegance touch screen control kit

Temperature: The LCD will display the temperature measured by the temperature sensor in the range of 43℉～140℉.

Set temperature: The temperature setting range is 95℉～131℉. The default setting temperature is 109℉.

Set time: The maximum setting time is 60 minutes. The default working time is 45 minutes. If the system is in long-term working mode, the CH blinks.

1.?Fast response: With the special and delicate design of the system, a large volume of steam will come out within 5 minutes after the heating elements begin to work, and quickly boosts the temperature to the setting value. The intelligent heating-by-section makes heating process more efficient and minimizes the energy used, more importantly, non-stop steam generation is ensured even during the water tank filling period.

2. ?Multi-protection. Besides the GFCI (Ground Fault Circuit Interrupter ), the KSA-E series also installed the following protection circuits: over-heat protection; lack-of-water protection; over-pressure protection, assisted by the newest microprocessor technology to give automatic diagnose message in order to give customer maximum level of safety and easy trouble-shooting when any fault happens.

3.?As professional we could tell you that the decisive fact for a steam generator is actually the quality of the heating elements rather than functions. Therefore we choose the best magnesian powder, 304# stainless steel, and seal glue to guarantee a durable product. We also oxidize the heating elements surface with Teflon . More importantly, the advanced automatic washing, cooling and draining functions minimize the conglomeration of calcium and magnesium on the heating element so as to greatly extend the life of heating elements.

4.?To install water magnetizing filter impurity, or pressure reducer to reduce the inlet water pressure, or external light according to customer requirements.? ?

Applications:

Fit for 14~19 cubic meter volume home use and commercial use

Make you more healthy!

Specifications:

KSA- S160 steam generator:

1) Power:160kW, voltage: 220/380V, phase:3
2) controllers: KSA-elegance
3) Operates machine for 1~60 minutes before turning off
4) Automatically shuts down when water level is too low
5) Temperature high limit switch
6) With auto cleaning and draining function
7) High quality with 2-year warranty

Please see the details for your installment reference:

Model

Power KW

Room volume (m3)

Power requirements?????????? 50/60Hz

Current?(A)
