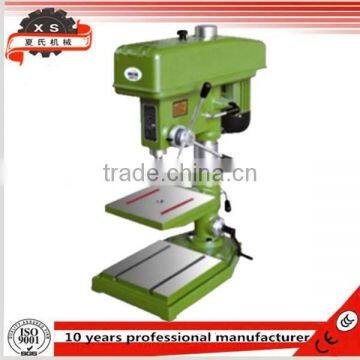

Indusrial type drilling machine Z4116A
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
Bed Type Milling Machine B600SC
-
CNC deep hole drilling machine (gun drilling machine)ZK2162
-
DK7750 edm wire cutting machine price
-
z3050x16/1 High quality radial drilling machine,mini drilling machine for sale
-
GMC1630 CNC Gantry milling machine, gantry type machine center
-
X6140 Universal Knee-type Milling Machine
Product Details
| Condition | New | CNC or Not | Normal | |
| Drilling Speed | 400-4090r/min | Place of Origin | Guangxi, China | |
| Brand Name | XiaShi | Model Number | Z4116A | |
| Dimension(L*W*H) | 495*375*850mm | Weight | 140KG | |
| Certification | CE,ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Feature
Both spindle head,worktable ,column and base using high quality cast iron,strong and ever
lasting.High precision with excellent feature,widely used at all kinds of fields such as instrument industry,machinery producing and repairing.
Technical parameter
Model | Z4112A/Z4116A |
Max.Drilling capacity (mm) | 12.7/16 |
Diameter of column (mm) | 70 |
Spindle travel (mm) | 100 |
Distance spindle axis to column generating line (mm) | 193 |
Max. Distance spindle nose totable (mm) | 95 |
Max. Distance spindle nose tbase (mm) | 320 |
Spindle taper | B16/MT2 |
Spindle speeds range (r/min) | 400-4090 |
Spindle speeds series | 5 |
Dimension f worktable surface (mm) | 250X250 |
Table travel (mm) | 495X375 |
Overall height (mm) | 850 |
Motor ( w ) | 550/750 |
G.W/N.W ( kg ) | 120/102 |
Packing dimension (cm) | 83X42X92 |
Standard accesories
Drill chuck
Arbor(only taper hole spindle)
Drift(only taper hole spindle)
Wrench
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
