Endless outer casing tube machine
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | BOBO | |
| Model Number | FX-2 |
Product Description
Specifications
Endless outer casing tube machine1- material from flat wire
2- diameter from 4-12mm
3- length:endless
Flexible conduit machine for control cable casing.

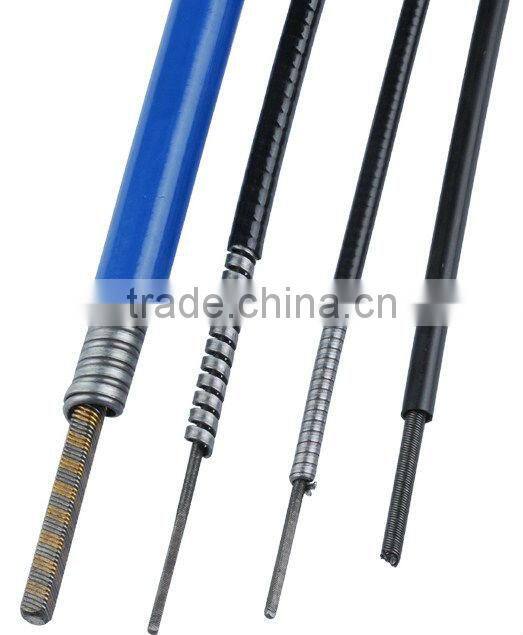

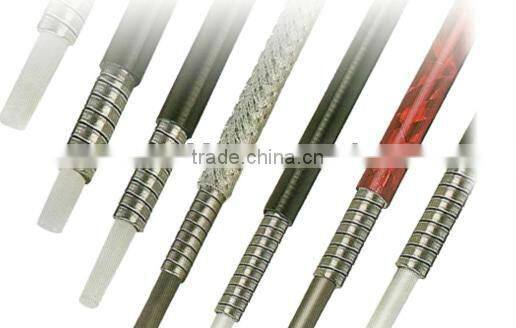

The outer casing machine is used to produce flexible hose continuously. The outer casing hose is widely used for control cable, such as brake cable, clutch cable, throttle wire, etc. The inner plastic hose can be optional for different purpose.
Main techincal data
1 | Flexible hose diameter | 4-12mm |
2 | Forming speed | 2.6m/min |
3 | Crane capacity | 120kg |
4 | Motor power | 3.75KW |
5 | Dimension | 2200 X 900 X 2000mm |
6 | Weight | 1500KG |

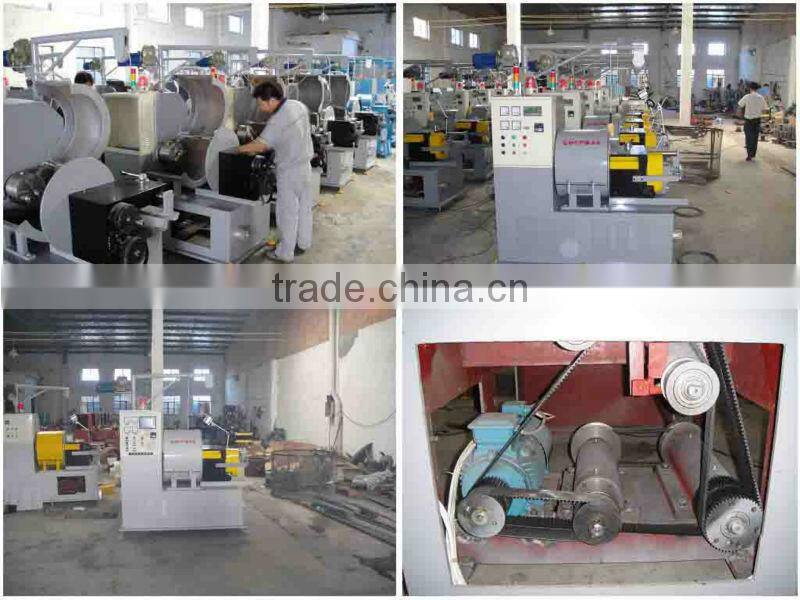

Machine assembling
Feature
1- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
2- Wire and inner hose feeding device has function option as “Manual” and “Automatic”
3- Equipped with auto alarm and emergency stop function if no wire / inner hose feeding
4- Equipped with electric crane for wire bobbin lifting up and down.

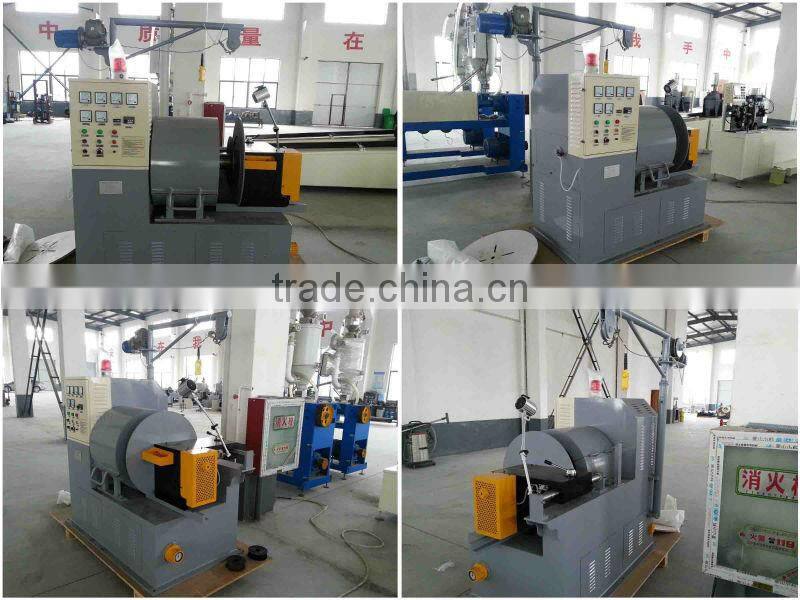

Machine testing
Machine package
Shipment: FOB Shanghai, China.
Payment term: 30% down payment by T/T, the balance by T/T against copy of B/L.
Delivery time: 30 days after receiving down payment.
