Automatic Cutting Machine for Cable Outer Casing
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, conduit cutting machine | |
| Pipe Material | Carbon Steel | Application | Other, cable casing, control cable protection | |
| Production Capacity | >650pcs/hour when length <2000mm | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | QG-I | |
| Voltage | 380V | Power(W) | 0.75kw+1.5kw | |
| Dimension(L*W*H) | 4200x1120x1450mm | Weight | 1400kg | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
automatic cutting machine for cable outer casing1- high accuracy
2- low noise
3-automatically

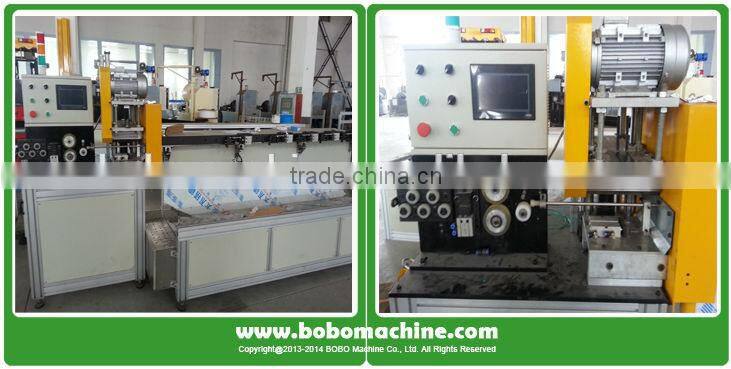

automatic cutting machine for cable outer casing
The automatic cutting machine for cable outer casing is used to cut the flexible hose into right size continuously, which is widely used for control cable production, such as brake cable, clutch cable, throttle wire, etc. Compare to traditional machine, the new generation one works automatically with higher accuracy and lower noise.
Features of automatic cutting machine for cable outer casing
- Fast speed pre-feeding at beginning
- Slow speed feeding when length is close to limit
- Fixed the feeding length by limit switch
- Quick adjustment and locking system (Adjustment tolerance±5MM )
Main technical data of automatic cutting machine for cable outer casing
S.N | Description | QG-I | QG-II |
1 | Work diameter | Up to 8mm | Above 8mm |
2 | Cutting speed | >650pcs/hour when length <2000mm | |
3 | Max. Cutting length | 3500mm | |
4 | Grinding wheel rotate speed | >7000rpm | |
5 | Motor power | 0.75kw+1.5kw | 1.5kw+2.2kw |
6 | Dimension | 4200x1120x1450mm | |
