Home > Products > Flexible conduit machine > outer casing machine for control cable
outer casing machine for control cable
USD $9,000 - $25,000
/ Set
1 Set(Min.Order)
- 6 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, conduit forming machine | |
| Pipe Material | Carbon Steel | Application | Other, cable casing, control cable protection | |
| Production Capacity | 2-4m/min | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | FX-I | |
| Voltage | 380V | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 2200X1000X2000mm | Weight | 1400kg | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
outer casing machine for control cable1- material from flat wire
2- diameter from 4-12mm
3- length:endless

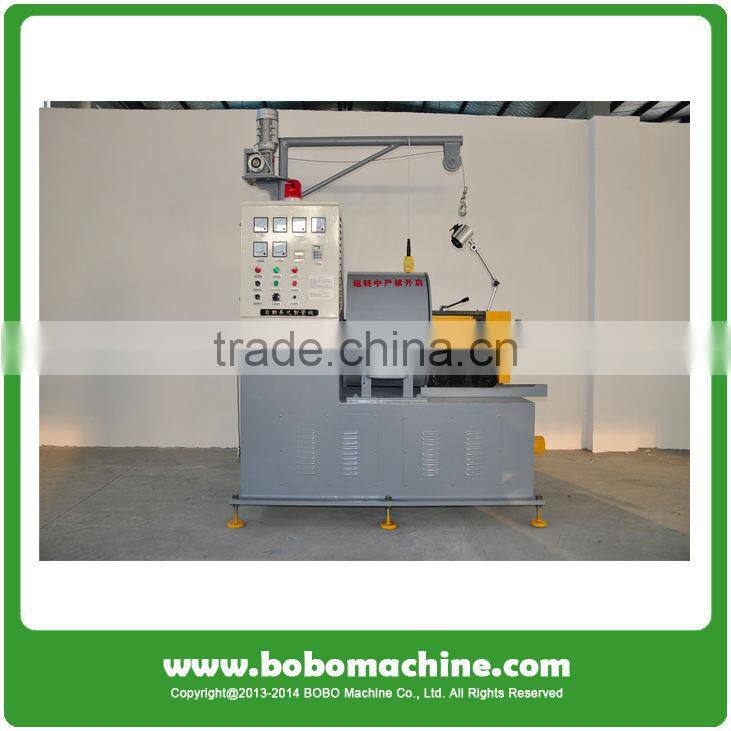

Outer casing machine for control cable
The outer casing machine for control cable is used to produce flexible hose continuously. The outer casing hose is widely used for control cable, such as brake cable, clutch cable, throttle wire, etc. The inner plastic hose can be optional for different purpose.
Features of outer casing machine for control cable
- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
- Wire and inner hose feeding device has function option as “Manual” and “Automatic”
- Equipped with auto alarm and emergency stop function if no wire / inner hose feeding
- Equipped with electric crane for wire bobbin lifting up and down.
Main technical data of outer casing machine for control cable
1 | Flexible hose diameter | 4-12mm |
2 | Forming speed | 2.6m/min |
3 | Crane capacity | 120kg |
4 | Motor power | 3.75KW |
5 | Dimension | 2200 X 900 X 2000mm |
6 | Weight | 1500KG |
