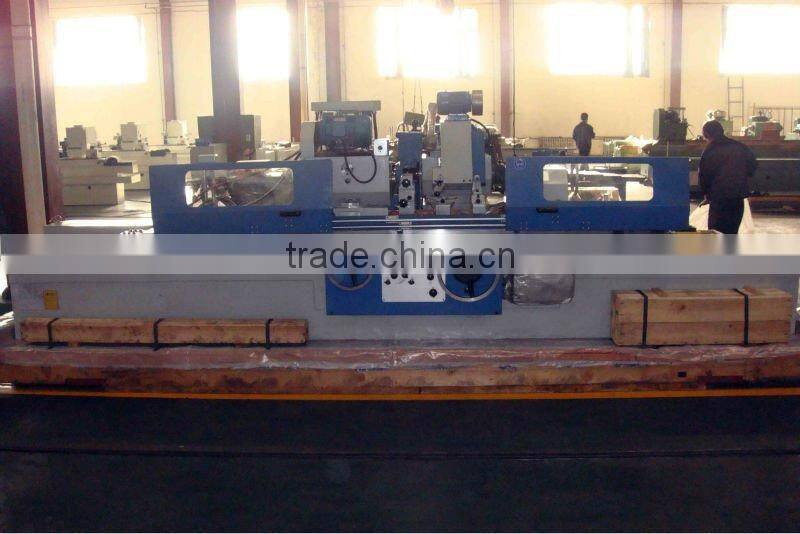

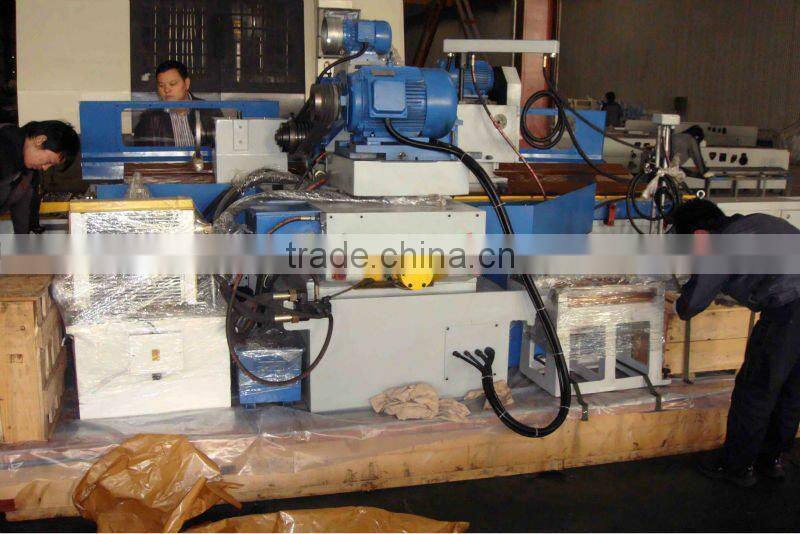

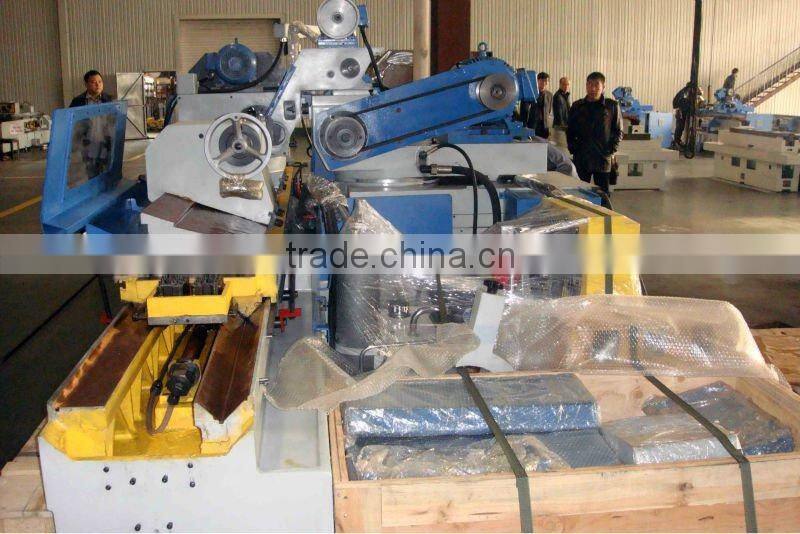

500mm OD Cylindrical Grinding Machine / External and Internal Grinding Machine
- China seaport
- T/T
You May Like
-
Universal Cylindrical Grinding Machine UG-200H
-
Precision Die Surface Grinder GS630A
-
Small Crankshaft Grinding Machine / Crankshaft Grinder ( QM-600A)
-
Rectificadora / Saddle Moving Surface Grinding Machine / Surface Grinder
-
Vertical Spindle Surface Grinding Machine With Round Worktable
-
810x2200mm Special Designed Large Sized NC Surface Grinding Machine
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 500mm | |
| Max. Grinding Length | 1500/2000/3000/4000mm | Place of Origin | Henan, China | |
| Brand Name | TIMAC | Model Number | G-500, UG-500 | |
| Certification | ISO, CE, TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. External & Internal grinding;2. OD ground 500mm;
3. ID ground 200mm;
4. Grinding length 1500/2000/3000/4000mm;
Cylindrical Grinding Machine G-500
--- External grinding dia. 25~500mm;
--- External grinding length 1500mm, 2000mm, 3000mm, 4000mm;
Universal Cylindrical Grinding Machine UG-500
--- External grinding dia. 25~500mm;
--- Internal grinding dia. 30~200mm
--- External grinding length 1500mm, 2000mm, 3000mm, 4000mm;
--- Internal grinding length 320mm;
Specification | Unit | G-500 | UG-500 | |
General capacity | Distance between centers | mm | 1500, 2000, 3000, 4000 | |
Centre heigh | mm | 270 | ||
Dia.Ground(O.D) | mm | 25~500 | ||
Dia.Ground(I.D) | mm | - | 30~200 | |
Max.length ground(O.D) | mm | 1500, 2000, 3000, 4000 | ||
Max.length ground(I.D) | mm | - | 320 | |
Max weight of work piece | kg | 1000 | ||
Workhead | Swiveling angle |
| - | ±90° |
Center taper | MT | 6 | ||
Spindle speed | r/min | 50HZ: 18-180; stepless | 50HZ: 20-224; stepless | |
Wheelhead | Wheel spindle speed | r/min | 870 | 1330/665 |
Wheel-head rapid travel | mm | 100 | ||
Max travel | mm | 438 | 370 | |
Swiveling angle | ° | - | ±30° | |
Hand feed per.rev | mm | rough:4.0; fine:0.5 | ||
Hand feed per.gra. | mm | rough:0.02; fine:0.0025 | ||
Max dimension of wheel(OD×W×ID) | mm | 750×75×305 | 500×75×305 | |
Peripheral velocity | m/s | 35 | 35/17.5 | |
Internal grinding | Spindle speed | r/min | - | 10000 |
Dimension of wheel | mm | - | Max:175x32x32; Min: 30x25x10; | |
Table | Hand feed per rev. | mm | 5 | |
Max swiveling angle of table (clockwise/anticlockwise) | ° | 3° / 6°, 2° / 5°, 2° / 3°, 1° / 2° | ||
Longitudinal traverse speed of table | m/min | 0.1~3 | ||
Tailstock | Center taper | MT | 6 | |
Quill travel | mm | 70 | ||
Motor | Wheel-head motor power | Kw | 15 | 5/7.5 |
Internal grinding | Kw | - | 1.5 | |
Power of work-head motor | Kw | 4 | ||
Machine | Gross weight | Kg | 11200, 13000, 17400, 20000 | |
Packing dimension | cm | 510x228x210, 585x228x210, 7850x228x210, 1000x228x210 | ||
Model: G-200, G-320, G-500, G-630, G-800 (for external grinding)
Model: UG-200, UG-320, UG-500, UG-630 (for external & internal grinding)
* Grinding diameter x Grinding length:
- 200 x 500mm, 200 x 750mm;
- 320 x 1000mm, 320 x 1500mm, 320 x 2000mm, 320 x 3000mm;
- 500 x 1500mm, 500 x 2000mm, 500 x 3000mm, 500 x 4000mm;
- 630 x 2000mm, 630 x 3000mm, 630 x 4000mm, 630 x 5000mm;
- 800 x 3000mm, 800 x 4000mm, 800 x 5000mm;
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
* Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.
* Payment terms: T/T, L/C, Western Union payment terms is acceptable.
* Delivery time: 60~90days....(vary as the machine's different size and complexible).
* Warranty period: 12monthes after delivery. (Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
