Home > Products > Grinding Machine > Universal Cylindrical Grinding Machine G-200 & UG-200

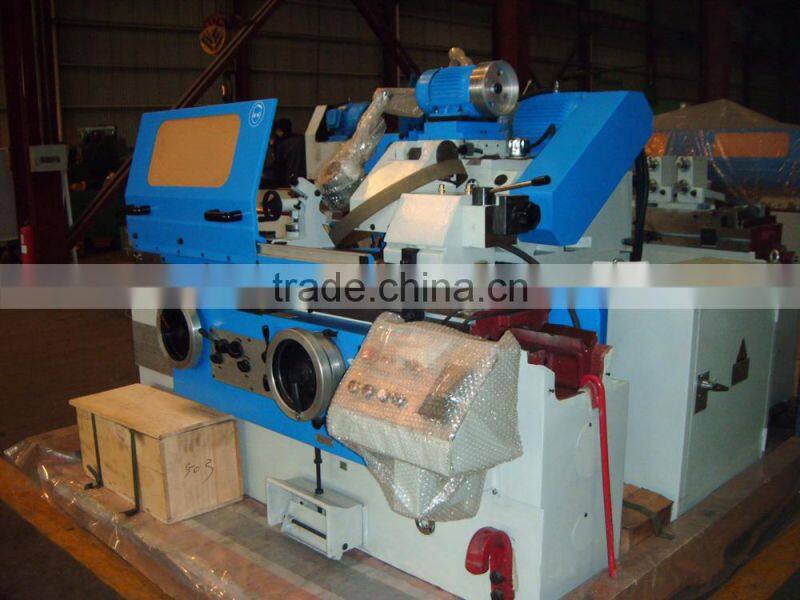

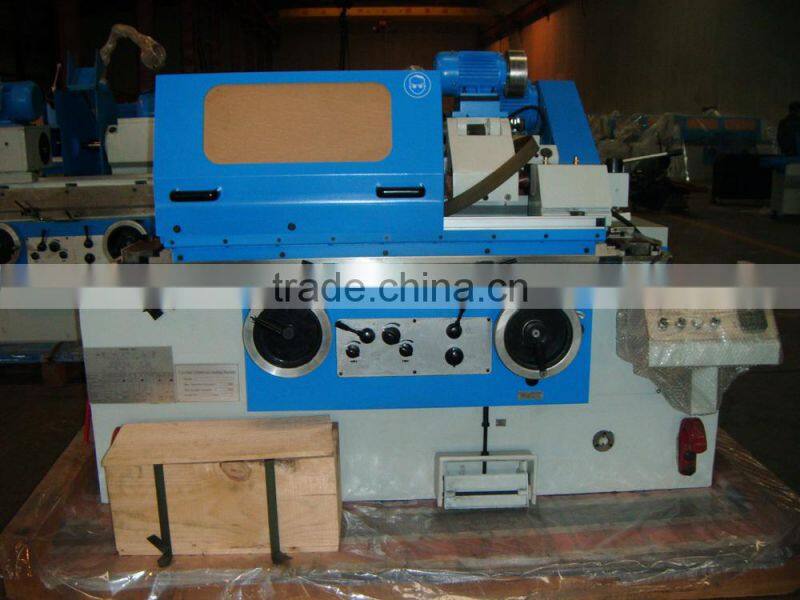

Universal Cylindrical Grinding Machine G-200 & UG-200
- China seaport
- T/T
You May Like
-
Universal Cylindrical Grinding Machine / External & Internal Grinding Machine
-
Precision Cylindrical Grinding Machine / Rectificado Cilindrico
-
CNC Surface Grinding Machine
-
630mm/800mm Grinding Diameter Cylindrical Grinding Machine / External Grinder
-
Universal Tool Cutter Grinder U2
-
Universal Tool Cutter Grinder TM-20A (U1)
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 200mm | |
| Max. Grinding Length | 500/750mm | Place of Origin | Henan, China | |
| Brand Name | TIMAC | Model Number | G-200, UG-200 | |
| Certification | ISO, CE, TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. Cylindrical grinding machine2. Max. grinding diameter 200mm
3. Grinding length 500/750mm
4. High precision
Cylindrical Grinding Machine G-200
--- External grinding dia. 5~200mm;
--- External grinding length 500mm, 750mm;
Universal Cylindrical Grinding Machine UG-200
--- External grinding dia. 5~200mm;
--- Internal grinding dia. 25~100mm
--- External grinding length 500mm, 750mm;
--- Internal grinding length 125mm;
| Specification | Unit | G-200 | UG-200 | ||
| General capacity | Distance between centers | mm | 500, 750 | 500, 750 | |
| Center height | mm | 135 | 135 | ||
| Dia. Ground (O.D) | mm | 5~200 | 5~200 | ||
| Dia. Ground (I.D) | mm | - | 25-100 | ||
| Max. length ground (O.D) | mm | 500, 750 | 500, 750 | ||
| Max. length ground (I.D) | mm | - | 125 | ||
| Max. weight of workpiece | kg | 100 | 100 | ||
| Work head | Swiveling angle | ° | - | +90° | |
| Center taper | MT | 4 | 4 | ||
| Spindle speed | r/min | 50HZ:25-380 (Stepless) | 50HZ:25-380 (Stepless) | ||
| Wheel head | Wheel spindle speed | r/min | 1335 | 1670 | |
| Wheel head rapid travel | mm | 50 | 50 | ||
| Max. travel | mm | 205 | 205 | ||
| Swiveling angle | ° | - | +10° | ||
| Hand feed per.rev | mm | rough: 2, fine: 0.5 | rough: 2, fine: 0.5 | ||
| Hand feed per.gra | mm | rough: 0.01, fine: 0.0025 | rough: 0.01, fine: 0.0025 | ||
| Wheel size (OD x W x ID) | mm | 500x50x503 | 400x5x 203 | ||
| Peripheral velocity | m/s | 35 | 35 | ||
| Internal grinding device | Spindle speed | r/min | - | 10000/15000 | |
| Dimension of wheel | mm | - | max:50x25x13, min:17x20x6 | ||
| Table | Hand feed per.rev | mm | 6 | 6 | |
| Max. swing | Clockwise | ° | 3° | 3° | |
| angle of table | Anticlockwise | ° | 9° (500), 8° (750) | 9° (500), 8° (750) | |
| Longitudinal speed range of table | m/min | 0.1-4 | 0.1~4 | ||
| Tailstock | Center taper | MT | 4 | 4 | |
| Quill travel | mm | 30 | 30 | ||
| Motor | Wheel head motor power | kw | 5.5 | 4 | |
| Internal grinding motor power | kw | - | 1.1 | ||
| Work head motor power | kw | 0.75 / 1.5 | 1.1 | ||
| Machine | Gross weight | T | 4(500), 4.2(750) | 4.1(500), 4.3(750) | |
| Packing dimension (LxWxH) | cm | 235x203x205(500) | |||
| 275x203x205(750) | |||||
Model: G-200, G-320, G-500, G-630, G-800 (for external grinding)
Model: UG-200, UG-320, UG-500, UG-630 (for external & internal grinding)
* Grinding diameter x Grinding length:
- 200 x 500mm, 200 x 750mm;
- 320 x 1000mm, 320 x 1500mm, 320 x 2000mm, 320 x 3000mm;
- 500 x 1500mm, 500 x 2000mm, 500 x 3000mm, 500 x 4000mm;
- 630 x 2000mm, 630 x 3000mm, 630 x 4000mm, 630 x 5000mm;
- 800 x 3000mm, 800 x 4000mm, 800 x 5000mm;
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
* Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.
* Payment terms: T/T, L/C, Western Union payment terms is acceptable.
* Delivery time: 60~90days....(vary as the machine's different size and complexible).
* Warranty period: 12monthes after delivery. (Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
