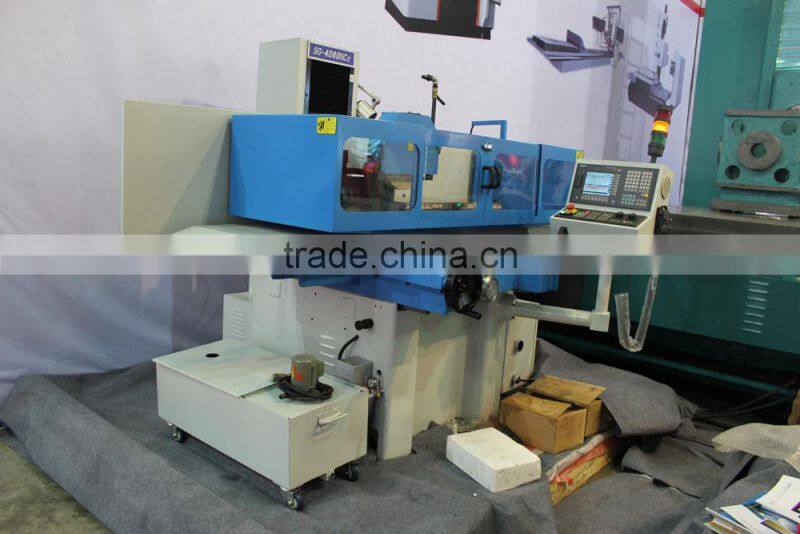

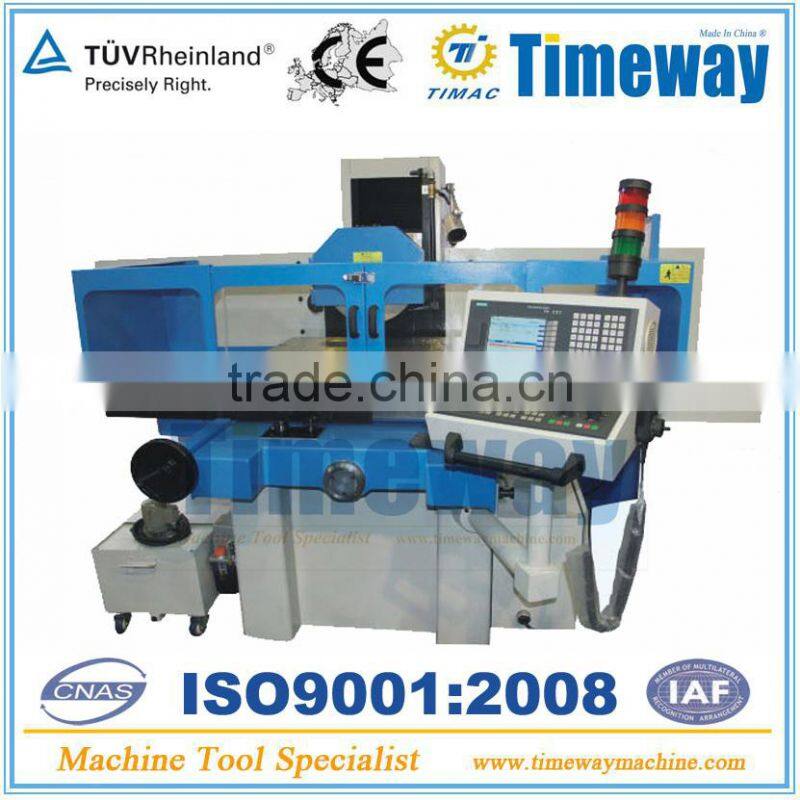

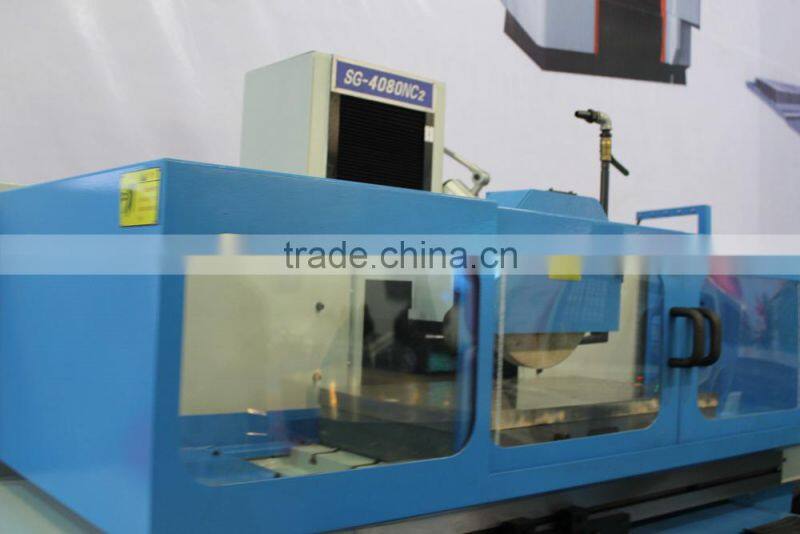

300x600, 300x1000 CNC Hydraulic Surface Grinding Machine
Negotiable
/ Set
1 Set(Min. Order)
- China Port
- T/T
You May Like
-
BGK-320 High Speed CNC Cylindrical Grinding Machine
-
BGDK-200 CNC End Face Cylindrical Grinding Machine
-
CNC Retifica Cilindrica Universal GK-320
-
BUG-500 Large-size Cylindrical Grinding Machine
-
BUG-320 Internal and External Cylindrical Grinding Machine
-
BUG-320C Heavy Duty Universal Cylindrical Grinder
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Place of Origin | Henan, China | |
| Brand Name | TIMAC | Model Number | SG-3063CNC, SG-30100CNC | |
| Certification | ISO, CE, TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.CNC surface grinding machine;2.Siemens Sinumerik 808D CNC control;
3.Working area of 30/600mm;
4.Saddle-move arrangement;
CNC Hydraulic Saddle Moving Type Surface Grinding Machine

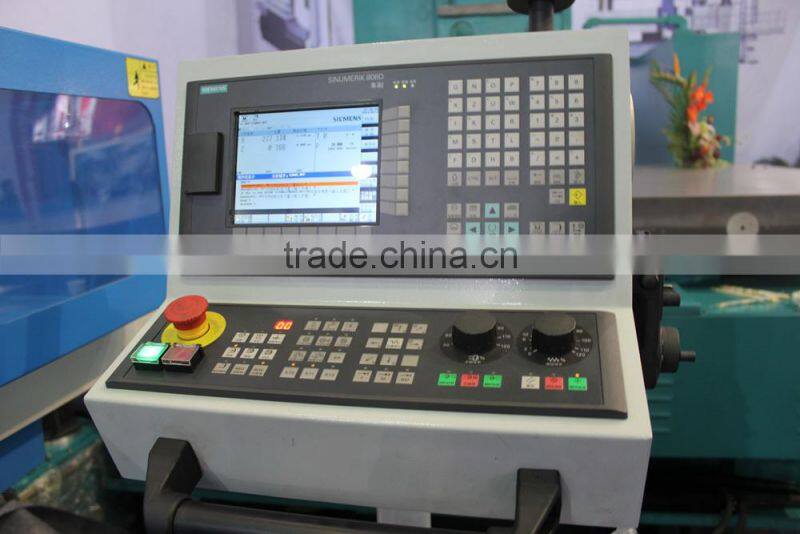

CNC controller: Siemens SINUMERIK 808D;
CNC2 series : hydraulic for longitudinal direction, CNC for cross and vertical direction;
CNC3 series: CNC for longitudinal, cross and vertical direction.
***Standard Accessories:
SIEMENS SINUMERIK 808D CNC system;
Coolant tank, Electronic magnetic chuck, Wheel balancing arbor, Wheel flange,
Wheel extractor, Leveling wedge and bolt, Tool box & tools, Standard grinding wheel,
Wheel dresser stand, Diamond pen, Built in electro magnetic chuck controller, etc.
| Specification | Unit | SG-3063CNC2 | SG-30100CNC2 | |
| SG-3063CNC3 | SG-30100CNC3 | |||
| Table size(WxL) | mm | 305x635 | 305x1020 | |
| Max. longitudinal travel | mm | 765 | 1130 | |
| Max. cross travel | mm | 340 | 340 | |
| Max.distance from spindle center to table surface | mm | 580 | 580 | |
| Electro magnetic chuck size | mm | 300x600 | 300x1000 | |
| Table longitudinal movement | Speed | m/min | 5~25(CNC2 model); 0.02~15(CNC3 model) | |
| Feed of electro hand wheel | mm/div. | 0.005 (CNC3 model) | ||
| Table transverse movement | Auto feed | mm/stroke | 0.1~8 | |
| Rapid speed | mm/min | 0.05~1 | ||
| Feed of handwheel | mm/div. | 0.005 | ||
| Wheelhead vertical movement | Auto feed | mm/stroke | 0.005~0.05 | |
| Rapid speed | mm/min | 0.05~1 | ||
| Feed of handwheel | mm/div. | 0.005 | ||
| Grinding wheel | Speed | rpm | 1450(50Hz), 1750(60Hz) | |
| Size(ODxWxID) | mm | 350x40x127 | ||
| Spindle motor | kw | 5.5 | ||
| Hydraulic motor | kw | 2.2 (CNC2 model) | ||
| Cooling pump motor | kw | 0.125 | ||
| Parellism of working surface to mounting base | mm | 300:0.005 | ||
| Roughness of working surface | μm | Ra≤0.63 | ||
| Max.loading capacity of table(include magnetic chuck) | kg | 270 | 400 | |
| Height of machine | mm | 1890 | ||
| Floor space(LxW) | mm | 3800x2200 | 4400x2200 | |
| Gross weight | kg | 2800 | 3500 | |
