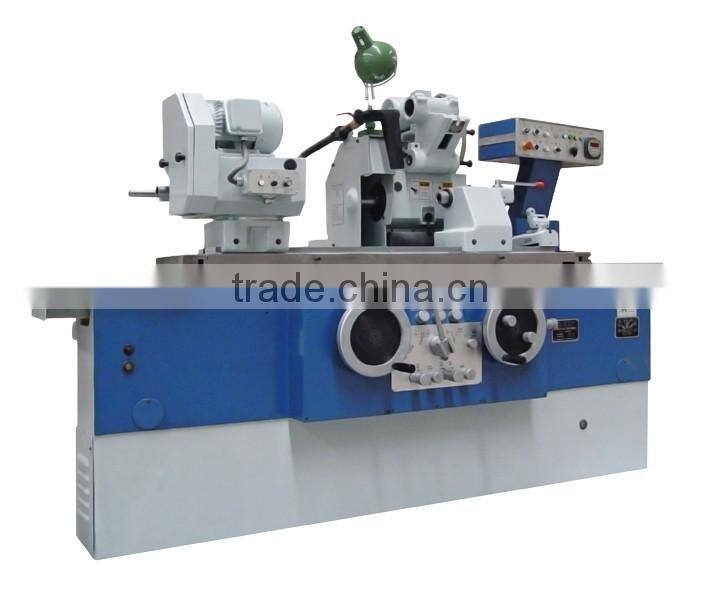

BUG-320G High Precision Semi-automatic Universal Cylindrical Grinder Machine

FOB Price

USD $10,000 - $35,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cylindrical Grinding Machine
CNC or Not	Normal	Max. Grinding Diameter	320mm
Max. Grinding Length	1000mm	Brand Name	TIMAC
Model Number	BUG-320G	Voltage	380V 50Hz
Power(W)	7.5kw	Dimension(LWH)	380022002200mm
Weight	3500kg	Certification	CE ISO
After-sales Service Provided	Engineers available to service machinery overseas

High Precision Universal Cylindrical Grinding Machine

BG-320G BGB-320G BUG-320G BUGB-320G

Main Outlook

Main Performances

Features and Performance

With the screw pump adopted in the hydraulic drive system and it gains features of smooth running and low running noise.
Equipped with sleeve type big conical degree hydrodynamic bearing shafting with integral bearing bush in wheel head, high rotary precision and rigidity are realized.
The feeding guideway uses antifriction & plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
Besides the advantages of high machining accuracy, reasonable overall layout and attractive appearance, the operating handles of the machine are centralized arranged and viesualization, thus to make the machine easy to control and safe to operate.
With the function of semi-automatic plunge-cut grinding and longitudinal grinding controlled by the sizematic grinding or automatic measuring instrument, the machine of BGB/BUGB type (high-precision semi-automatic) can be used for processing small lot or batched high precision parts.
For the BGB/BUGB type machine (high-precision semi-automatic), all the grinding functions and sequence of operation in the processing cycle are controlled by PLC.

Main Accessories

Special Accessories

Specifications List

Technical Parameters

Specifications		Units	BG-320G BGB-320G			BUG-320G BUGB-320G
			*500	*750	*1000	*500	*750	*1000
Height of center		mm	180			180
Distance between centers		mm	520	765	1050	520	765	1050
Maximum swiveling diameter		mm	350			350
Maximum grinding length		mm	500	750	1000	500	750	1000
Range of external grinding		mm	5-320			5-320
Range of internal grinding		mm	-			16-125
Maximum internal grinding depth(over 45mm)		mm	-			160
Maximum workpiece weight between centers		kg	50
Grinding wheel	OD.WID.	mm	400(32-50)203
	Maximum linear speed	m/s	35
Swiveling angle of worktable	Clockwise	°	9	8	3	9	8	3
	Counter-clockwise	°	9	8	7	9	8	7
Taper hole of spindle	Work head		Morse4
	Tailstock		Morse4
Total power		Kw	7			7.5
Net weight		kg	2500	3000	3500	2500	3000	3500
Gross weight		kg	3100	3600	4100	3100	3600	4100
Overall dimensions	Length	mm	2800	2900	3800	2800	2900	3800
	Width	mm	2200
	Height	mm	2200

Working Accuracy

Inspection content	Sketch oftest-piece and machining condition(mm)	Inspection item	Units	BG-320G BGB-320G			BUG-320G BUGB-320G
				*500	*750	*1000	*500	*750	*1000
Grinding accuracy of testpiece between centers	L=150 d=50	Roundness	mm	0.0005			0.0005
	L=200 d= 60
	L=350 d=35	Consistency of the diameter in longitudina section	mm	0.003		-	0.003		-
	L=750 d=75			-		0.005	-		0.005
	-	Roughness	um	Ra≤0.01			Ra≤0.01
The grinding accuracy of short testpiece on chuck	L=30 d=60	Roundness	mm	-			0.002
	-	Roughness	um	-			Ra≤0.04
The accuracy of testpiece internal grinding on chuck	L=50 d=30	Roundness	mm	-			0.002
	L=100 d=60
	-	Roughness	um	-			Ra≤0.04
Accuracy of testpiece plunge cut grinding	L=30 d=25	Consistency of batched parts diameter after grinding	Fixed distance grinding: 0.012/20 pieces Automatic measuring device: 0.005/20 pieces
	L=30 d=40

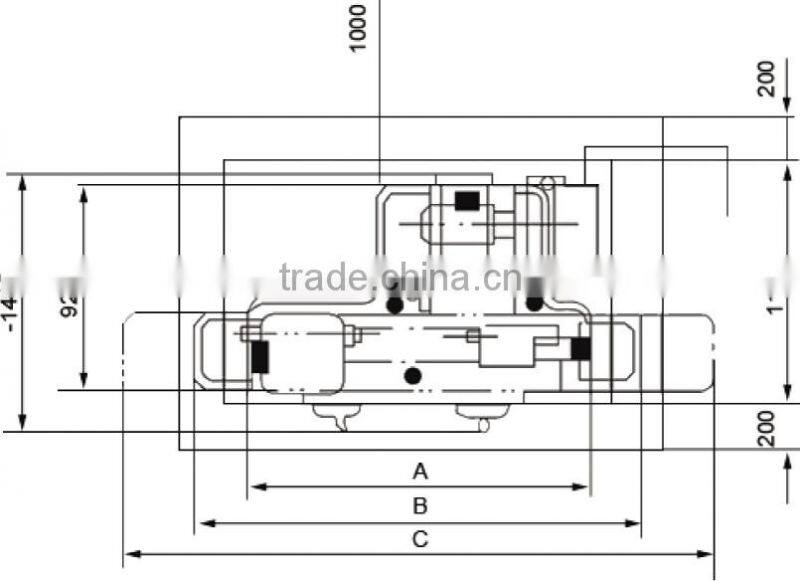

Layout Plan(Unit: mm)

The foundation depth is determined by the property of soil and should not be less than 400mm.
