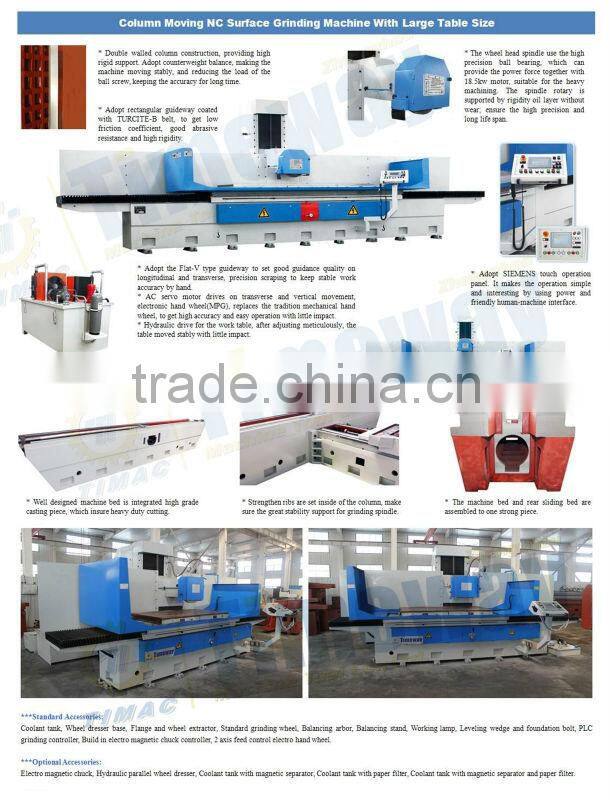

1000mm NC Type Column Moving Large Surface Grinding Machine
Negotiable
/ Set
1 Set(Min. Order)
- China port
- T/T Credit Card
You May Like
-
G-800 Large Sized Cylindrical Grinding Machine for External Grinding (Rectificadora Cilindrica)
-
CNC Universal Cylindrical Grinding Machine / CNC Universal Grinder
-
Universal Cylindrical Grinding Machine G-200 & UG-200
-
Universal Cylindrical Grinding Machine / External & Internal Grinding Machine
-
Precision Cylindrical Grinding Machine / Rectificado Cilindrico
-
CNC Surface Grinding Machine
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 1000mm | |
| Max. Grinding Length | 1600mm, 2200mm, 3000mm, 4000mm, etc | Place of Origin | Henan, China | |
| Brand Name | TIMAC | Model Number | SG100220FR, SG-100250FR, SG-100300FR, SG100400FR | |
| Voltage | as requirement | Power(W) | 41KW | |
| Weight | 19.5T | Certification | ISO, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. Large table size surface grinder2. High grade casting bed
3. SIEMENS touch panel
4. PLC grinding controller
Features:
| Specification | Unit | SG-100220FR | SG-100250FR | SG-100300FR | SG-100400FR | |
| Working Area | ||||||
| Table size (W x L) | mm | 1000x2200 | 1000x2500 | 1000x3000 | 1000x4000 | |
| Max. grinding dimension (W x L) | mm | 1000x2200 | 1000x2500 | 1000x3000 | 1000x4000 | |
| Max. Grinding height | mm | 670 / 1000(heightening column) | ||||
| Electro magnetic chuck (optional) | mm | 1000x1000x2 | 1000x800x3 | 1000x1000x3 | 1000x1000x4 | |
| Max. loading capacity ( include chuck) | kg | 2400 | 2400 | 3500 | 5000 | |
| 3 axis feed | ||||||
| Table longitudinal movement speed | m/min | 5~25 | ||||
| Wheel head cross movement | Auto. feed | mm/t | 1~30 | |||
| Rapid speed | m/min | 0.05~3 | ||||
| Feed of electro handwheel | mm/gr | 0.005 | ||||
| Wheel head vertical movement | Auto. feed | mm/t | 0.005~0.05 | |||
| Rapid speed | m/min | 0.05~2 | ||||
| Feed of electro handwheel | mm/gr | 0.005 | ||||
| Grinding wheel | ||||||
| Speed | rpm | 960 | ||||
| Size (OD x W x ID) | mm | 500 x 75 x 203 | ||||
| Motor | ||||||
| Spindle motor | kw | 18.5 | ||||
| Hydraulic pump motor | kw | 7.5 | 11 | |||
| Elevating servo motor and cross feed servo motor | kw | 3 | ||||
| Total rated power | kw | 34 | 38 | 41 | ||
| Dimensions and Weight | ||||||
| Floor space (L x W) | mm | 6000x4300 | 6100x4300 | 8200x4300 | 10000x4300 | |
| Gross Weight | kg | 14000 | 14500 | 16000 | 19500 | |
Standard accessories:
Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools, wheel dresser(without diamond pen), standard wheel, leveling wedges and foundation, PLC grinding controller, operation manual(English edition).
Optional accessories:
Electric magnetic chuck, wheel balancing stand, parallel dresser, cooling system with paper filter, cooling system with magnetic separator, cooling system with magnetic separator & paper filter.
