CNC Universal Cylindrical Grinding Machine / CNC Universal Grinder

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cylindrical Grinding Machine
CNC or Not	CNC	Max. Grinding Diameter	320mm
Max. Grinding Length	1500mm	Brand Name	TIMAC
Model Number	UGK-200,UGK-320	Voltage	as customer's request
Power(W)	4KW	Dimension(LWH)	2600mm2060mm2050mm
Weight	4100kg	Certification	CE & ISO
After-sales Service Provided	Engineers available to service machinery overseas

"UGK Series "CNC Universal Cylindrical Grinding Machine/CNC Universal Grinder(UGK-200, UGK-320)

Product Description

Standard Accessories:

Semi isolated table shield, Coolant tank, Wheel dresser, 2 points steady rest (Standard dimension), wheel flange

Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Internal grinding attachment,

Siemens electrical equipment & delta transducer, Operation Manual (English edition).

Optional Accessories:

Full-closed safety cover, Coolant tank with magnetic separator, Coolant tank with paper filter, Machine safety

relay protection.

Parameter:

Specification		Unit	UGK-200	UGK-320
* General capacity
Distance between centers		mm	500,750	1000 1500
Center height		mm	135	180
Dia.ground(O.D)		mm	5-200	8-320
Dia.ground (I.D)		mm	25-100	30-100
Max.length to be ground(O.D)		mm	500,750	1000 1500
Max. length to be ground (I.D)		mm	100	125
* Workhead
Swiveling angle		º	±90º
Center taper(MT)		MT	4
Spindle speed/stepless		r/min	50HZ:25-380	50HZ:25-220
* Wheel head
Swiveling angle		º	±10º	±30º
Wheel size(ODXWXID)		mm	400×50×203
Wheel peripheral velocity		m/s	35
Min. set unit		mm	0.002
* Internal grinding device
Spindle speed		r/min	10000
* Table
Max. swiveling angle of table	Clockwise	º	3º
	Anticlockwise	º	9º(500), 8º(750)	7º(1000), 6º(1500)
* Tailstock
Center taper(MT)		MT	4
Quill travel		mm	30
* Electric system
CNC system			Siemens SINUMERIK 808D
Wheelhead motor power		kw	4	5.5
Internal grinding motor power		kw	1.1
Workhead motor power		kw	1.1	1.5
*Machine accuracy
Roundness		μm	3
Cylindricity		μm	5(500), 8(750)	8
Roughness		μm	Ra0.32
* Machine
Gross weight		T	4.1(500), 4.3(750)	5.3(1000), 6.1(1500)
Packing dimension(L×W×H)			260×206×205(500)	338×200×205(1000)
			300×206×205(750)	438×200×205(1500)

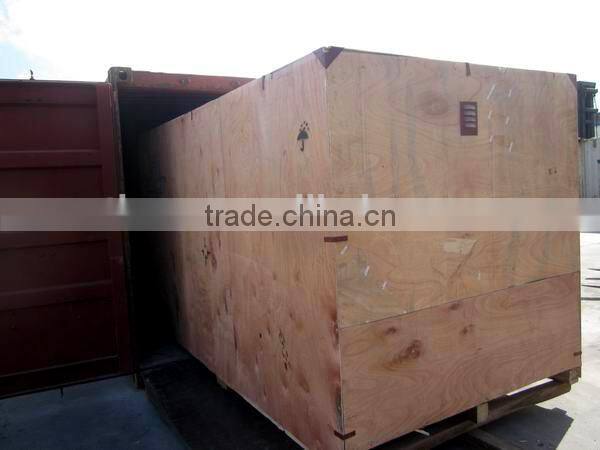

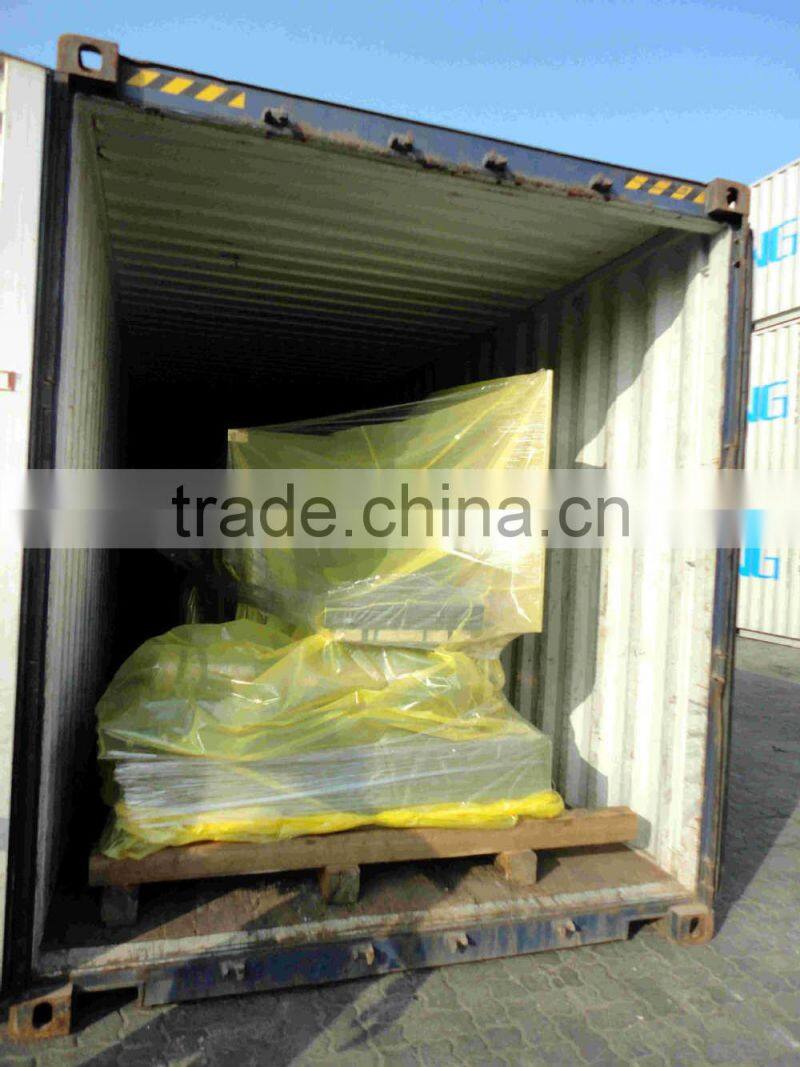

Packaging & Shipping

Our Services

Buyer Feedback
