Wheelhead Moving Surface Grinder GS-300A
- Qingdao port
- T/T
You May Like
-
810x4000mm Large Sized PLC Controlled Surface Grinding Machine
-
Retifica Plana Hidraulica SG-40800AHD
-
Universal Cylindrical Grinder UG-200H
-
Heavy Duty Surface Grinder SG-81160SD
-
Retificadoras Planas Hidraulica SG-40800AHD
-
Hydraulic Surface Grinding Machine (Saddle Moving Type) / Precision Surface Grinder
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Length | 1000mm | |
| Brand Name | TIMAC | Model Number | GS-300A | |
| Voltage | As per customer's request | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 2860*1845*2030mm | Weight | 3400KG | |
| Certification | CE; ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

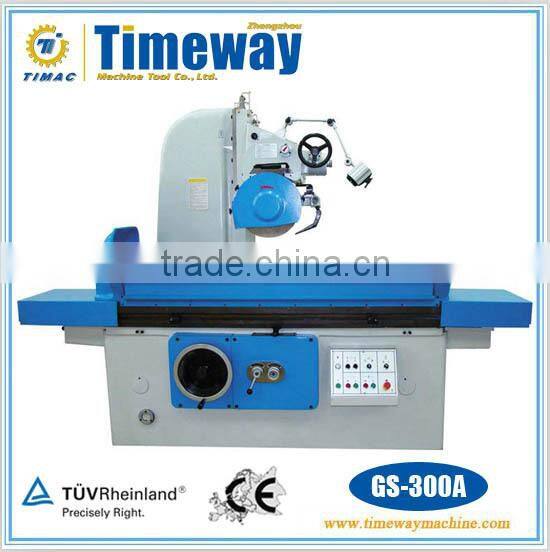

Hydraulic Surface Grinder (Wheel head Moving)
GS-300A
Parameter:
Model | Unit | GS-300A GS-300B GS-300C | GS-320A GS-320B GS-320C | GS-400A GS-400B GS-400C | GS-500A GS-500B GS-500C | GS-630A GS-630B GS-630C | ||
Worktable size | Width | mm | 300 | 320 | 400 | 500 | 630 | |
Length | mm | 1000/1600/2200 /3000/4500 | 1000/1600/2200 /3000/4500 | 1000/1600/2200 /3000/4500 | 1000/1600/2200 /3000/4500 | 1250/1600/2200 /3000/4500 | ||
Max processing dimension | Width | mm | 300 | 320 | 400 | 500 | 630 | |
Length | mm | 1000/1600/2200 /3000/4500 | 1000/1600/2200 /3000/4500 | 1000/1600/2200 /3000/4500 | 1000/1600/2200 /3000/4500 | 1250/1600/2200 /3000/4500 | ||
Height | mm | 400 800 1200 | 400 800 1200 | 400 800 1200 | 500 800 1200 | 500 800 1200 | ||
Max. distance between spindle center line and worktable surface | mm | 575 975 1375 | 575 975 1375 | 600 1000 1400 | 700 1000 1400 | 700 1000 1400 | ||
Longitudinal moving speed of worktable | m/min | 3-27 | 3-27 | 3-25 | 3-27 | 3-27 | ||
T-slot number/width | pcs*mm | 3*18 | 3*18 | 3*18 | 3*22 | 3*22 | ||
Wheelhead cross moving | Consecutive feed speed | m/min | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | |
Intermittent feed speed | mm/t | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | ||
Hand wheel feed | mm/gra |
|
| 0.02 | 0.01 | 0.01 | ||
Wheelhead vertical moving | Rapid feed | mm/min | 400 | 400 | 400 | 400 | 400 | |
Hand wheel feed | mm/gra | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | ||
Wheelhead motor | Power | kw | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | |
Rotation speed | r.p.m | 1440 | 1440 | 1440 | 1440 | 1440 | ||
Total power | kw | 9/11 | 9/11 | 11/13.5/15.75 | 12.25/13.75/15.75 | 13.75/15.75 | ||
Max. loading capacity of worktable(with chuck) | kg | 470/750/1030/ 1400/2100 | 500/800/1100/ 1500/2250 | 620/1000/1380 /1872/2810 | 700/1240/1410 /1930/2895 | 1010/1290/1780 /2430/3650 | ||
Wheel size(OD*W*ID) | mm | 350*40*127 | 350*40*127 | 400*40*127 | 400*40*203 | 400*40*203 | ||
Overall dimension | Length | mm | 2860/4250/5750/ 7880/12170 | 2860/4250/5750/ 7880/12170 | 3110/4250/5750 /7880/12170 | 3110/4250/5750 /7880/12170 | 3300/5320/5750 /7880/12170 | |
Width | mm | 1845 | 1865 | 1740 | 1900 | 1900 | ||
Height | mm | 2030 2510 2930 | 2030 2510 2930 | 2230 2630 3030 | 2420 2720 3120 | 2420 2720 3120 | ||
*** Standard accessories:
Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools,
wheel dresser rest (without diamond pen), standard wheel, leveling wedges and foundation, electro
magnetic chuck, operation manual(English edition).
*** Optional accessories:
Wheel balancing stand, demagnetizer, air-cooled machine

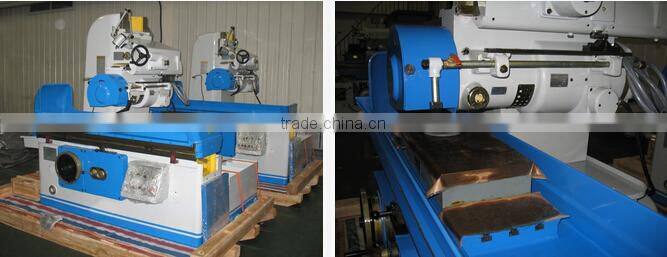

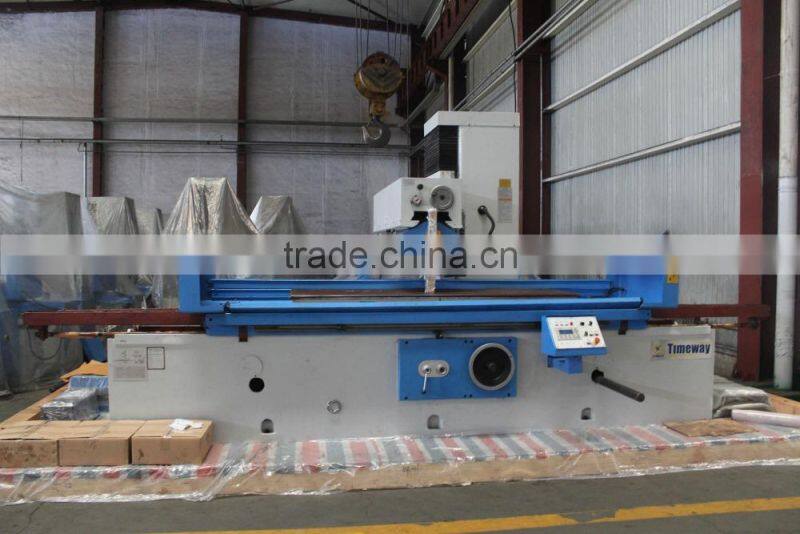

GS-300A Series Wheelhead Moving type

GS-500A Series Wheelhead Moving type


GS-630A Series Wheelhead Moving type
Package: Wooden pallet & plastic cover
Packing size:
One piece in one case: 2850*2270*21800MM N.W./G.W.: 3200/3400KG
Container loaded: 2 sets / 20'GP
If you have any queries please give us a
call or send us a message.
We will be happy to assist you!
