Hydraulic Surface Grinder SG-40800AHD
- Qingdao port
- T/T
You May Like
-
CNC Surface Grinder SG-40800CNC2
-
500mm OD Cylindrical Grinding Machine / External and Internal Grinding Machine
-
Universal Cylindrical Grinding Machine UG-200H
-
Precision Die Surface Grinder GS630A
-
Small Crankshaft Grinding Machine / Crankshaft Grinder ( QM-600A)
-
Rectificadora / Saddle Moving Surface Grinding Machine / Surface Grinder
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Brand Name | TIMAC | |
| Model Number | SG-4080AHD | Voltage | As per customer's request | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 2850*2270*2180mm | |
| Weight | 3400KG | Certification | CE; ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

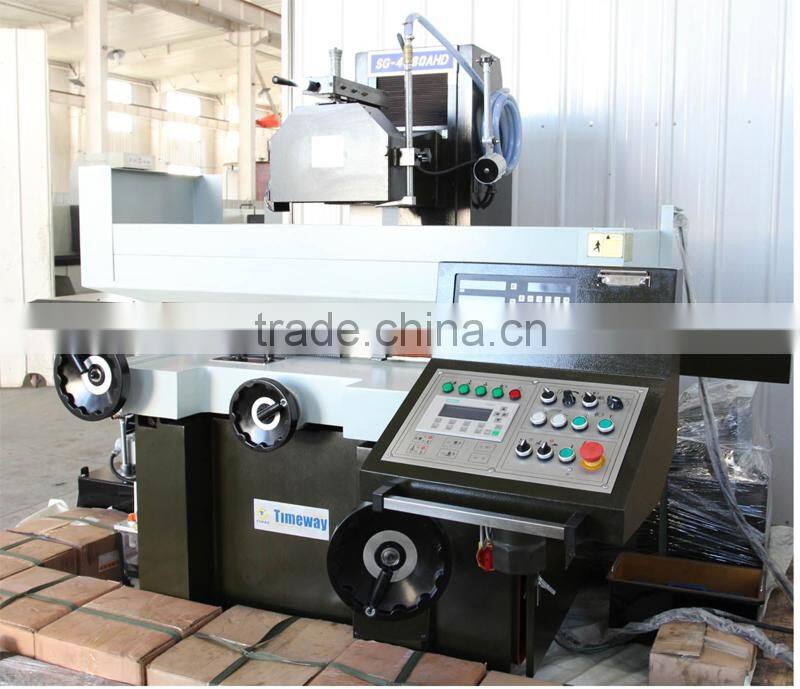

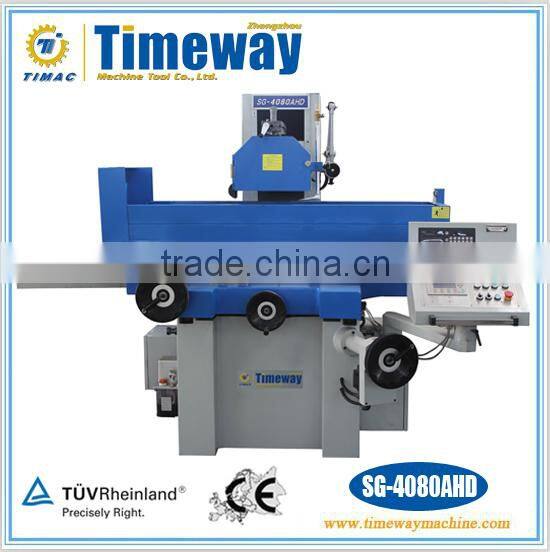

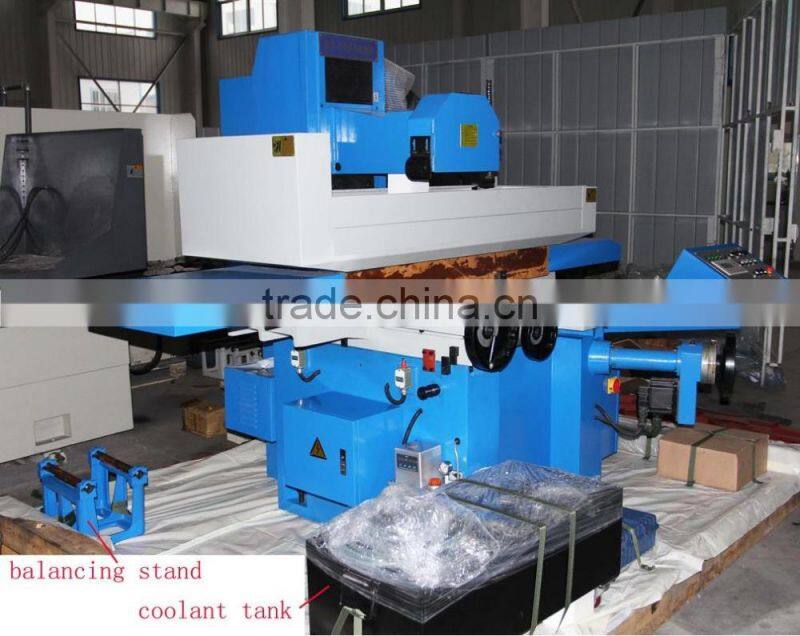

Hydraulic Surface Grinding Machine / SG-4080AHD
Parameter:
| Specification | Unit | SG-2550AH | SG-3063AH | SG-30100AH | SG-4080AH | SG-40100AH | |
| SG-2550AHR | SG-3063AHR | SG-30100AHR | SG-4080AHR | SG-40100AHR | |||
| SG-2550AHD | SG-3063AHD | SG-30100AHD | SG-4080AHD | SG-40100AHD | |||
| Table size(W×L) | mm | 250×500 | 305×635 | 305×1020 | 406×813 | 406×1020 | |
| Max.longitudinal travel | mm | 560 | 765 | 1130 | 910 | 1130 | |
| Max.distance from spindle center to table surface | mm | 450 | 580 | 580 | 580 | 580 | |
| Magnetic chuck size | mm | 250×500 | 300×600 | 300×1000 | 400×800 | 400×1000 | |
| Speed of table longitudinal movement | m/min | 7~23 | |||||
| Table transverse movement | Auto feed | mm | 0.1~8 | ||||
| Rapid speed | mm/min | 990 | |||||
| Feed of handwheel | mm/div. | 0.02 | |||||
| Wheelhead vertical movement | Auto feed | mm/stroke | 0.005, 0.01, 0.02, 0.03, 0.04, 0.05(only for AHD model ) | ||||
| Rapid speed | mm/min | 460(AHR, AHD) | |||||
| Feed of handwheel | mm/div. | 0.01(AH) 0.005(AHR,AHD) | |||||
| Grinding wheel | Speed | rpm | 2850(50Hz); 3450(60Hz) | ||||
| Size(OD×W×ID) | mm | 200×20×31.75 | 350×40×127 | ||||
| Motor of spindle | kw | 2.2 | 5.5 | ||||
| Max.loading capacity of table(include magnetic chuck) | kg | 180 | 270 | 400 | 500 | 600 | |
| Total rated power | kw | 3.7 | 9 | ||||
* AH: auto feed on transverse, hydraulic transmission on longitudinal, manual on vertical.
* AHR: auto feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical.
* AHD: auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical.

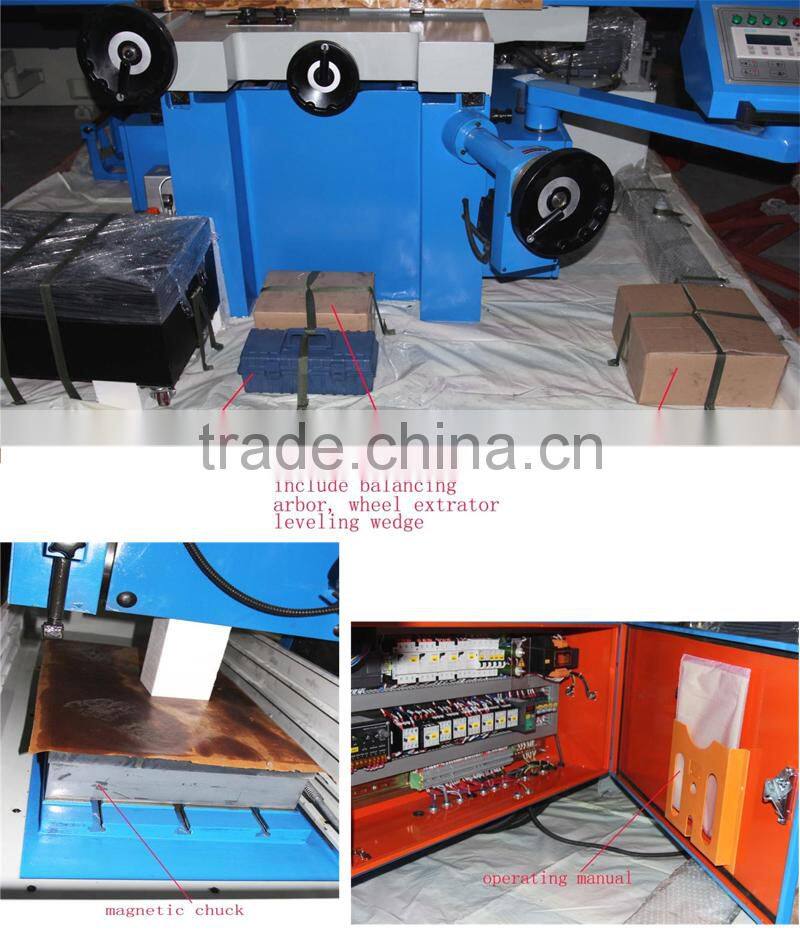

***Standard accessories:
Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools, wheel dresser (without diamond pen), standard wheel, leveling wedges and foundation, electric magnetic chuck, PLC auto.
grinding controller(Only for AHD), operation manual(English edition).

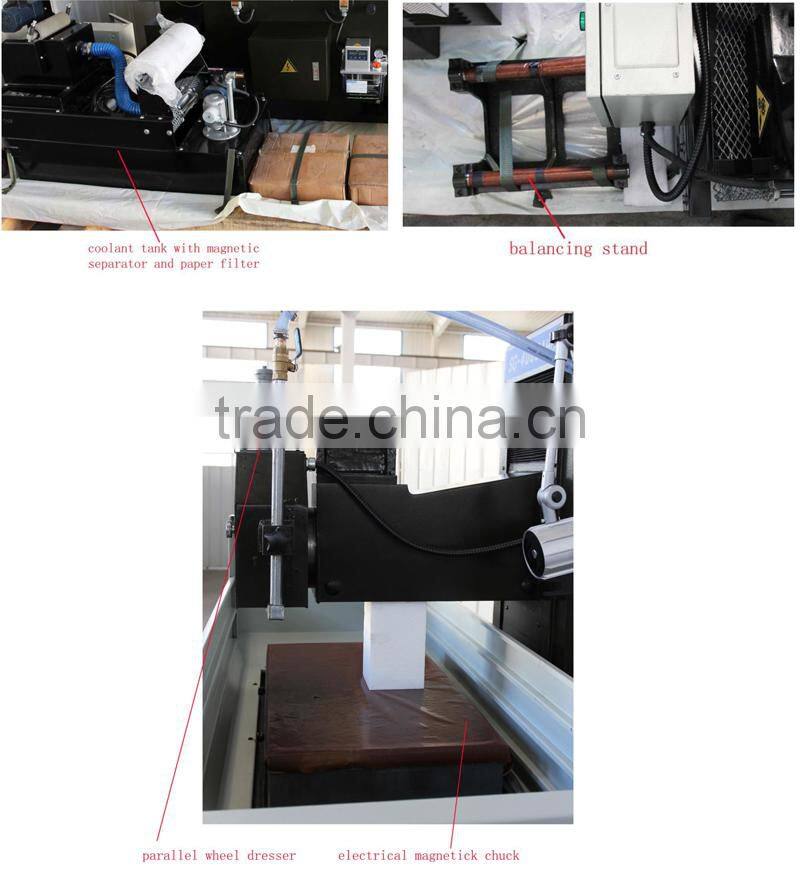

***Optional accessories:
Wheel balancing stand, parallel dresser, cooling system with paper filter, cooling system with magnetic separator,
cooling system with magnetic separator&paper filter

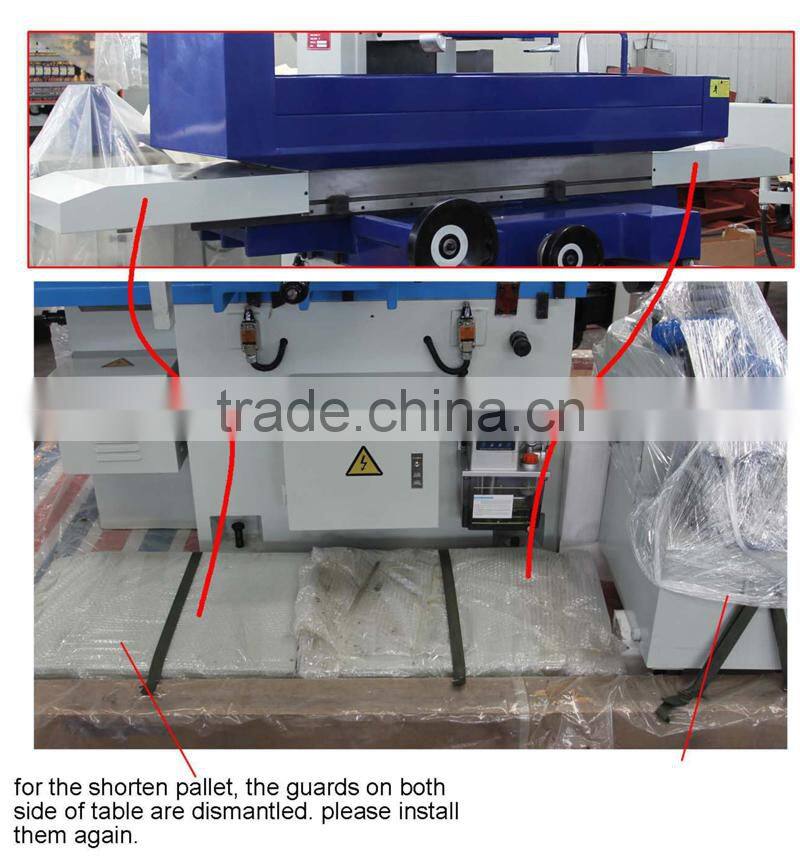

Package: Wooden pallet & plastic cover
Packing size:
One piece in one case: 2850*2270*21800MM N.W./G.W.: 3200/3400KG

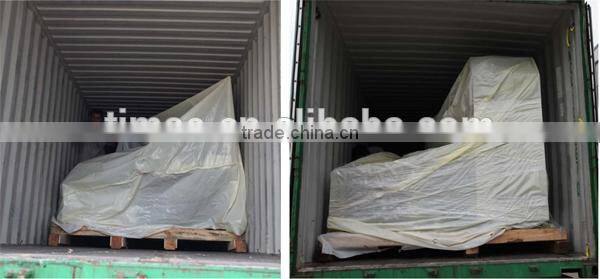

Container loaded: 2 sets / 20'GP
