Home > Products > CONSTRUCTIONS > Electric Pipe Threading machine TQ100-BFX
Electric Pipe Threading machine TQ100-BFX
Negotiable
1 (Min. Order)
You May Like
Product Details
| Brand Name | Qing Yang | Model Number | TQ100-BFX | |
| Rated Voltage | 220V | Frequency | 50Hz | |
| Rated Input Power | 1000W | Dimensions | 830mm*525mm*425mm | |
| Weight | 107 Kg |
Product Description

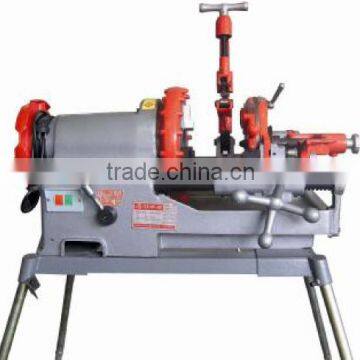

TQ100-BFX Pipe Threading Machine:
Features:
- Compact and high power output.
- Condenser motor, lower noise.
- Two operation speeds selectable.
- High reliability and long lasting.
- Auto profiling die heads.
Technical specification:
| Model | TQ100-BFX |
| Threading capacity | ½" - 4" |
| Speed (rpm) | 9, 23rpm |
| Motor | YYT 1000, 1000w, 2800rpm, 220V, 50Hz, 6.2A Motor with condenser (450V) |
| Die Head | Auto profiling, DH50-E, DH100-B |
| Die Type | 2014 (BSPT, exchangeable with REX dies) |
| Die specification and size | ½"--¾" , 1"--2" , 2½"--4" (one for each) 20mm*14mm |
| Net weight (KG) | 107 Kg |
| Machine size (mm) | 830mm*525mm*425mm |
| Packing size (mm) | 960mm*680mm*610mm |
Tools and accessories:
| Description | Specifications | Quantity |
| Die head | DH50-C (½"--2") | 1 |
| Stand leg | 1 set | |
| Spare cutter wheel | 1 | |
| Screw driver | 75 | 2 |
| Oil gun | 1 | |
| Coolant | 2 Kg | |
| Brush | 1 | |
| Heaxagon key | 3, 4, 5, 6, 8 | One for each |
| Operation manual | 1 | |
| Parts companion | 1 |
