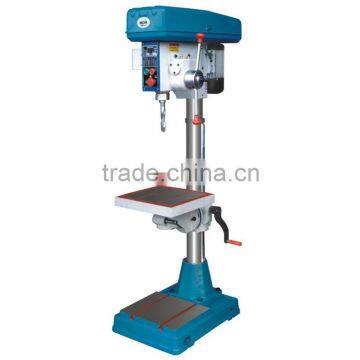

Automatic feed drilling machine DAF-25F
You May Like
Product Details
| Condition | New | Drilling Speed | 300 ~ 1540 | |
| Brand Name | West Ling | Model Number | DAF-25F | |
| Voltage | 240V | Power(W) | 750W | |
| Dimension(L*W*H) | 85cm*52cm*189cm | Weight | 240 KG |
Product Description
DAF-25F automatic feed drilling machine
Features:
- Belt drive, low noise.
- Spindle automatic feed and manual feed conversion, easy to operate.
- Spindle fixed depth operation, automatic return.
- B-type belt drive, drive torque, easy to slip.
Standard accessories:
- Drill chuck.
- Taper sleeve.
- Arbor.
- Drift.
- Wrench.
- Safety guard.
- Angle vice.
Model | DAF-25F |
Maximum drilling diameter (mm) | 25mm |
Column diameter (mm) | 95mm |
Spindle travel (mm) | 130mm |
Spindle feed rate (mm / r) | 0.08,0.09,0.10,0.12; 0.08,0.10,0.12,0.14 |
Spindle center to column surface distance (mm) | 235mm |
Maximum spindle nose to table distance (mm) | 665mm |
Spindle nose to working surface of base maximum distance (mm) | 1135mm |
Spindle taper | MT3 |
Spindle speed range (r / min) | 4: 300 ~ 1540 |
Spindle speeds | 4 |
Working table size (mm) | 370mm*385mm or Φ 420 |
Base Dimensions (mm) | 635mm*460mm |
Overall height (mm) | 1720mm |
Motor (w) | 750W or 1100W |
GW / NW (Kg) | 270Kg / 240Kg |
Packing size (cm) | 85cm*52cm*189cm |
** All Specification and Design are subject to change without prior notice **
