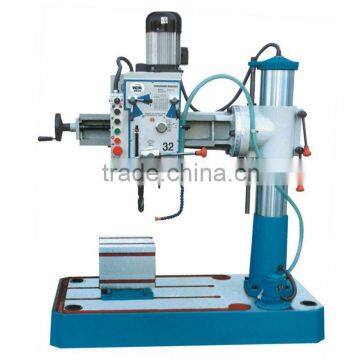

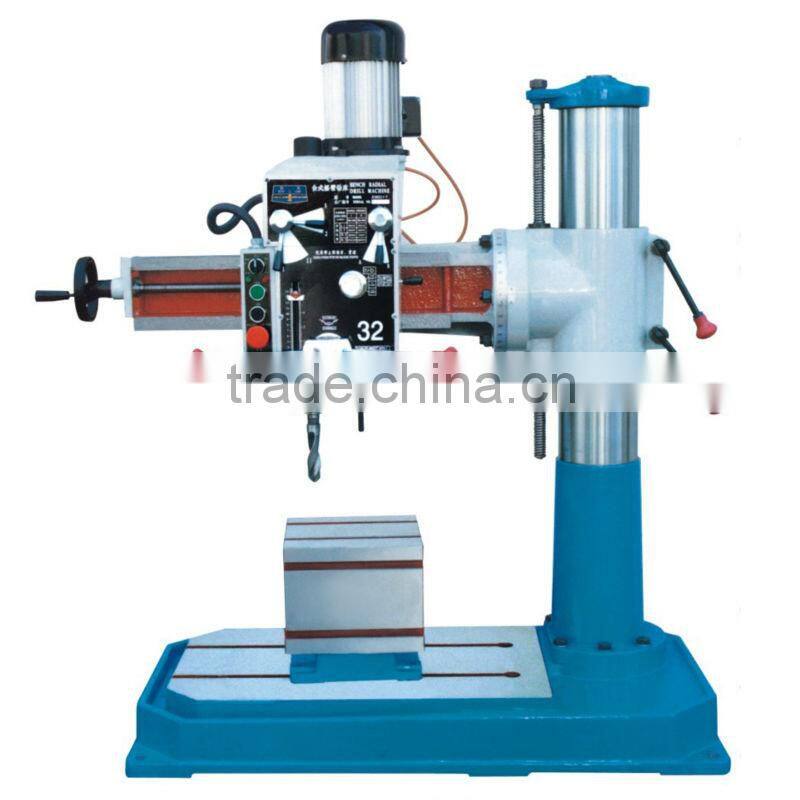

Radial Drilling Machine Z3032x7P

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

ZX3032x7P Radial Drilling Machine Characteristics:

With wide range of speed, with manual, power feed.
The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted ±45°, it reliable and easy job can be done.
Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely use for drilling, counterboring, reaming, tapping, etc.

Standard accessories:

Special accessories:

Model	ZX3032x7P
Max. Drilling capacity (mm)	31.5mm
Max. Tapping capacity (mm)	cast iron(20), steel (16)
Distance spindle axis to column generating line (mm)	300mm ~ 700mm
Diameter of column (mm)	150mm
Spindle taper	MT3
Spindle travel (mm)	130mm
Spindle speeds range (R/ min)	100 ~ 1600
Spindle speeds series	8
Spindle feeds (mm/R)	0.08, 0.14, 0.23
Rotary angle of rocker in horizontal plane (°)	360°
Distance spindle nose to working surface to base (mm)	275mm ~ 680mm
Dimensions of worktable (mm)	250mm250mm250mm
Dimensions of base (mm)	1200mm625mm155mm
Overall Size (mm)	1235mm625mm1230mm
Power of main motor (w)	1100w
G.W / N.W (Kg)	580Kg / 500Kg
Packing Dimensions (cm)	127cm69cm137cm

** All Specification and Design are subject to change without prior notice **
