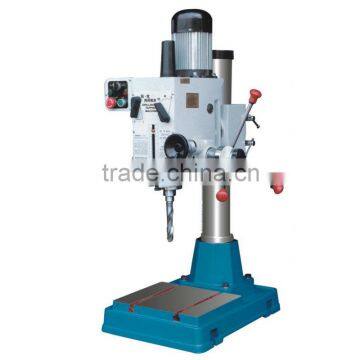

Gear Head Drilling & Tapping Machine ZS-40P

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

ZS-40P Gear Head Drilling & Milling Machine Characteristics:

The machine adopt gear driving and the driving moment is strong.
The machine has the six-series speed variable feature, which can be widely fot for processing to kinds of common hard & soft material.
The head can rotated 360° and can tiled ±45° it reliable and easy job can be done.
The motor drive by the gear, which overcome the shortcoming of the belt skid.
According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by the multi-spindles.
With coolant systems.

Standard accessories:

Special accessories:

Model	ZX-40P
Max. Drilling capacity (mm)	(cast iron)40, (steel)32
Max. Tapping capacity (mm)	(cast iron)M32, (steel)M24
Diameter of column (mm)	115mm
Spindle travel (mm)	120mm
Distance spindle axis to column generating line (mm)	272.5mm
Max. Distance spindle nose to base (mm)	800mm
Spindle taper	MT4
Spindle speeds	95, 170, 280, 540, 960, 160
Spindle speeds series (R/min)	6
Dimensions of base (mm)	690mm*520mm
Overall height (mm)	1450mm
Motor (W)	1100W
G.W / N.W (KG)	310 Kg / 270Kg
Packing Dimensions (cm)	75cm73cm146cm

** All Specification and Design are subject to change without prior notice **
