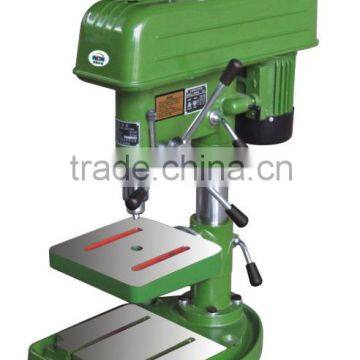

Industrial Type Bench Drilling Machine Z512-2
Negotiable
1 (Min. Order)
You May Like
Product Details
| Condition | New | Drilling Speed | 480 ~ 4100 | |
| Brand Name | Xest Ling | Model Number | Z512-2 | |
| Voltage | 240V | Power(W) | 370W | |
| Dimension(L*W*H) | 77cm*42cm*94cm | Weight | 108 Kg |
Product Description
Z516 Industrial Type Bench Drilling Machine
Features:
- Both spindle head, worktable, column and base using high quality cast iron, strong and ever lasting.
- High precision with excellent feature, widely used at all kinds of fields such as instrument industry, machinery producing and repairing.
Standard accessories:
- Drill chuck.
- Arbor (only taper hole spindle).
- Drift (only taper hole spindle).
- Wrench.
Special accessories:
- Safety guard.
- Vice.
| Model | Z512-2 |
| Max. Drilling capacity (mm) | 12.7mm |
| Diameter of column (mm) | 70mm |
| Spindle travel (mm) | 100mm |
| Distance spindle axis to column generating line (mm) | 193mm |
| Max. Distance spindle nose to table (mm) | 332mm |
| Max. Distance spindle nose to base (mm) | 556mm |
| Spindle taper | B16 |
| Spindle speeds range (R /min) | 480 ~ 4100 |
| Spindle speeds series | 5 |
| Dimensions of worktable surface (mm) | 265mm*265mm |
| Dimensions of base (mm) | 528mm*360mm |
| Overall height (mm) | 1037mm |
| Motor (W) | 370W |
| G.W / N.W (Kg) | 108Kg / 90 Kg |
| Packing Dimensions (cm) | 77cm*42cm*94cm |
** All Specification and Design are subject to change without prior notice **
