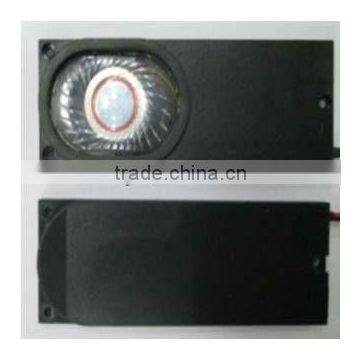

Micro Mylar Speaker Oblong P/N MD2030N-R002B08
Negotiable
/ Piece
2000 Pieces(Min.Order)
- Shenzhen
You May Like
-
Micro Speaker Box Implanted P/N YDT34114N-R001B08
-
Micro Speaker Box Implanted P/N YDT1425N-R018B08
-
Micro Speaker P/N YDT2828N-R02F4 (W28.0*L28.0*H10.3) with concave membrane for multimedia
-
Micro Speaker P/N YDT4646N-RB04F4 (W46.0*L46.0*H22.0) with concave membrane for multimedia
-
Micro Speaker P/N YDT3232N-RB07F4 (W32.0*L32.0*H16.0) with concave membrane for multimedia
-
Micro Speaker P/N YDT3434N-RB10F8 (W34.1*L34.1*H14.6) with concave membrane for multimedia
Product Details
| Brand Name | WBN | Model Number | MD2030N-R002B08 | |
| Use | Computer | |||
| Special Feature | Portable, Wireless | Place of Origin | Guangdong, China |
Product Description
Specifications
With plastic frame oblong & mylar membrane for tablet computerSPECIFICATION DATA SHEET | |||
ITEM | DESCRIPTION | SPECIFICATION | TESTING CONDITION / REMARKS |
1 | Overall Size | W20.0*L30.0*H4.7 |
|
2 | Impedance | 8 ohms | 8±15 %Ω 2K Hz |
3 | Power Rated (Max.) | 0.5 W | 2.0 V |
4 | Sound Pressure Level |
| |
5 | Characteristic Sensitivity | 88±3dB | 0.1m (At 1000,1200,1500,2000Hz Average) 0.89 V |
6 | Resonant Frequency(fo) | 220 ± 20 %Hz | 1.0V |
7 | Frequency Range | fo~12000 Hz |
|
8 | Application | Communication |
|
9 | Diaphragm | PET |
|
10 | Frame | Plastic |
|
11 | Magnet | NdFeB |
|
12 | Weight | 5.3±20%g |
|
13 | RoHs Compliant | Yes |
|
14 | Packing Details |
|
|
15 | FEATURES | Slim with high power rated | |
