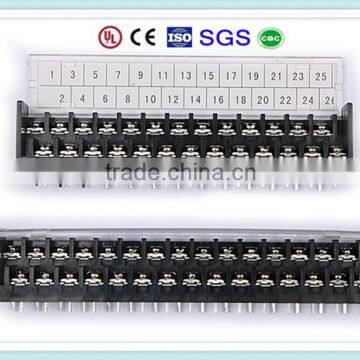

Straight and Right Angle Pin Dual Row Brass Terminal Block Connector 300V 10A 9.52mm Pitch
Negotiable
/ Unit
1000 Units(Min.Order)
- 50000 Unit / Units per Month
- Ningbo
- T/T Credit Card
You May Like
-
Barrier double row screw terminal block connector
-
0.8 Thick Ni Plated Screw Barrier Double Row Screw Terminal Connector 400V 30A 11mm Pitch KT2
-
Barrier Terminal Block Connector KDT29 300V 10A 6.35mm Pitch
-
10P Earth Electric Socket Terminal Connector KDT39 300V 20A 8.25mm Pitch
-
7.62mm Pitch 13P PCB Barrier Terminal Block KDT25 300V 15A with UL CE ROHS
-
9.5mm Pitch Barrier Terminal Block KDT45 300V 25A with UL CE ROHS
Product Details
| Place of Origin | Zhejiang, China | Brand Name | XIONGSHI | |
| Model Number | 3KDS | Type | Other, barrier |
Product Description
Straight and Right Angle Pin Dual Row Brass Terminal Block Connector 300V 10A 9.52mm Pitch
Product Description
Terminal Block Specification
| Model: 3KDS | |
| Approval | UL |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 10A |
| Wire range | 22-14AWG |
| Withstand Voltage | AC2000V for 1 minute |
| Insulation Resistance | 1000 mΩ / DC 500V |
| Materials | |
| Plastic Housing | PBT, UL94V-0, Black |
| Operation Temperature | -40℃- +130℃ |
| Terminal | Brass, Gold Plated |
| Screw | Steel, M3.0, Zinc Plated |
| Torque Value | 8Kg/cm |
Drawing
High and Low 2 Row Welding Terminal Block Connector , Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
High and Low 2 Row Welding Terminal Block Connector with Wire Hole and Without, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
Double Row Ladder Type Welding Terminal Block Connector with Angle Pin, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
Double Row Welding Terminal Block Connector with Angle Pin, Model: KT4
Screw Double Row Ladder Type Electric Terminal with Cover, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
Screw Double Row Ladder Type Electric Terminal with Straight Pin, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm
Certificate: CE, UL, ISO9001-2008, SGS, CQC
Application:
Packaging & Shipping
Company Information
Beijing Tiandi Nayuan Technology Co., Ltd. was established in 2003, is a professional manufacturer of terminal blocks. The company has passed the SGS, CQC, CE, UL, ISO9001: 2008 quality system certification for the purpose of "quality first, reputation first" committed "to meet customer demand" production and operation mode.
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!
Dear valued clients, thank you for your interests to our products. We have more than 10 years professional experience in terminal blocks fields. For more details, pls feel free to contact us.
