Home > Products > PAL connectors > EP-0901 PAL MALE R/A PC MOUNT

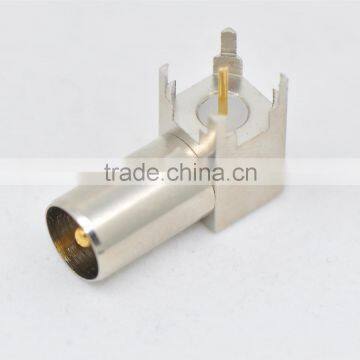

EP-0901 PAL MALE R/A PC MOUNT
Negotiable
1 (Min. Order)
You May Like
-
straight PAL female connector for pcb PAL JACK panel MOUNT EP-0805
-
PAL connector end launch PAL jack EP-0804 PAL JACK EDGE PC MOUNT
-
EP-0803 PAL JACK R/A PC MOUNT, 3 STANDS WITH SHIELDING
-
Right angle PAL female to pcb 3 STANDS EP-0802 PAL JACK R/A PC MOUNT
-
EP-0803 PAL JACK R/A PC MOUNT with shielding case
-
PAL type TV connector PCB connectors male Right Angle to PCB PAL Connector TV (IEC) connector EP-0903
Product Details
| Place of Origin | Guangdong, China | Brand Name | eastron | |
| Model Number | EP-0901 PAL MALE R/A PC MOUNT | Type | PAL | |
| Application | RF | Gender | Male |
Product Description
RF connector and Coaxial connector and PAL connector are popular in satellite TV, MATV and electronic applications when video are necessary.
75 ohms PAL connector male for cable crimping RF179
General Specificaton:
1. ELECTRICAL
Impedance: 75 ohms
Frequency Range: 0~1GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 750V
Contact Resistance: 5 mW MAX
Insulation Resistance: 1000 MW MIN.
VSWR<1.3 up to 1.0 GHz
2. GENERAL CHARACTERISTICS
Storage Temperature: -40°C to 85°C
3. Rohs:
All the components of this connector are compliant with European directive 2002/95/CE”.
Standard:
IEC169
