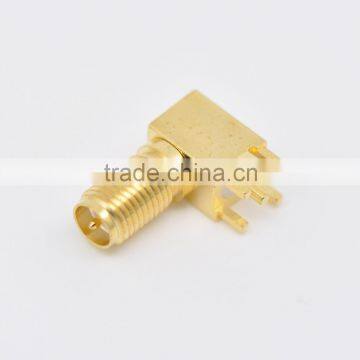

ESA-0803 R/A SMA female for pcb RF connector RP SMA pcb connector
US$ 0.25 - 0.65
/ Piece
5 Pieces(Min. Order)
- hk
- T/T Credit Card PayPal
You May Like
-
Straight SMA connector through hole to pcb
-
SMA series, SMA connector, RF SMA
-
0803 RF SMA R/A jacks SMA female,SMA JACK for PCB
-
50 ohms SMA-JK good quality SMA adaptor good performance SMA gender male to gender female connector adaptor 12GHz VSWR<0.3
-
SMA femal smd type SMA connectors female for pcb
-
0803 02 01female SMA connector right angle to PCB mounting good quality SMA jack Right angle SMA receptacle
Product Details
| Place of Origin | Guangdong, China | Brand Name | EASTRON | |
| Model Number | ESA-0803 RP | Type | SMA | |
| Application | PCB | Gender | Female |
Product Description
PRODUCT OVERVIEW
SMA RP Female R/A 90degree for PCB mount
Product Type Connectors
Product Series SMA
Standard: IEC 60169
APPLICATIONS
· Base stations
· Antennas
· Telecommunications
· Instrumentation
· PC/LAN
General Specificaton:
1. ELECTRICAL
Impedance: 50 ohms
Frequency Range: 0~6GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 750V
Contact Resistance: 5 mW MAX
Insulation Resistance: 1000 MW MIN.
VSWR<1.3 up to 1.0 GHz
2. GENERAL CHARACTERISTICS
Storage Temperature: -40°C to 85°C
3. Rohs:
All the components of this connector are compliant with European directive 2011/65/EU”.
4. Product Group
5.Production Line View
6. Inspection View
7. Quality
- QC/Technical Support We possess digital calipers, digital micrometers, thread and pin gauges, tool microscopes, pitch diameter micrometers, height gauges, profile projectors, hardness testers, ohm testers and push/pull testers.
- Awards & Other Recognitions We are ISO 9001:2008 certified
