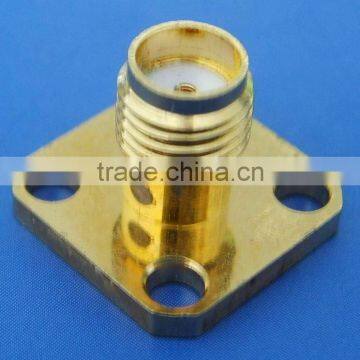

SMA jack connector, RF connector, SMA connector, SMA jack chassis mount connector
US$ 0.3 - 0.3
/ Piece
5 Pieces(Min. Order)
- T/T Credit Card
You May Like
-
SMA
-
Coaxial connector, RF connector, SMA connector, SMA jack Right Angle to PCB
-
SMA connector SMA 01 Coaxial connector, RF connector, SMA connector, SMA male for PCB panel mounting
-
SMA jack to antenna Coaxial connector, RF connector, SMA connector, SMA jack Right Angle to PCB, cable end
-
SMA connector SMA female to BNC female adaptor straight with Flange square 17.5
-
50 ohms RF connector BNC plug to SMA plug adaptor
Product Details
| Place of Origin | China | Type | SMA | |
| Application | RF | Gender | Male |
Product Description
Specifications
SMA jack Coaxial connector,RF connector, SMA connector for panel mounting and Right Angle to PCB,SMA jack Coaxial connector, RF connector, SMA connectors are a threaded coupling mechanism designed to provide high electrical performance for microwaveapplications up to 18GHZ.SMA connectors ensure excellent durability and mechanical strength.
1. ELECTRICAL
Impedance: 750W nominal
Frequency Range: 0~6GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 1500V
Contact Resistance: 3.0 mW MAX
Insulation Resistance: 5000 MW MIN.
2. GENERAL CHARACTERISTICS
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 85°C
| ESA-0801 | SMA JACK EDGE PC MOUNT |
| ESA-0802 | SMA JACK STRAIGHT PC MOUNT |
| ESA-0803 | SMA JACK R/A PC MOUNT |
| ESA-0804 | SMA JACK END LAUNCH |
| ESA-0901 | SMA MALE EDGE PC MOUNT |
| ESA-3801 | SMA JACK CRIMP FOR CABLE |
| ESA-3802 | SMA JACK CRIMP WITH CHAMFER FOR CABLE |
| ESA-3803 | SMA JACK SOLDER FOR CABLE |
| ESA-3804 | SMA JACK CRIMP SQUARE FLANGE 4 HOLES FOR CABLE |
| ESA-3805 | SMA JACK CRIMP RECTANGLE FLANGE 2 HOLES FOR CABLE |
| ESA-3806 | SMA JACK SOLDER FOR CABLE |
| ESA-3901 | SMA MALE R/A SOLDER & CRIMP FOR CABLE |
| ESA-3902 | SMA MALE SOLDER FOR CABLE |
| ESA-3903 | SMA MALE SOLDER FOR CABLE |
| ESA-3904 | SMA MALE CRIMP FOR CABLE |
| ESA-5801 | |
| ESA-5802 | SMA JACK SOLDER WITH RECTANGLE FLANGE 2 HOLES |
| ESA-5901 | SMA MALE SOLDER WITH RECTANGLE FLANGE 2 HOLES |
| ESA-5902 | SMA MALE SOLDER WITH SQUARE FLANGE 4HOLES |
| ESA-5903 | SMA MALE SOLDER WITH RECTANGLE FLANGE 2 HOLES |
| ESA-6001 | SMA MALE TO FEMALE |
| ESA-6002 | SMA MALE TO MALE |
| ESA-6003 | SMA MALE TO FEMALE RIGHT ANGLE |
| ESA-6004 | SMA FEMALE TO FEMALE |
| ESA-6005 | SMA FEMALE TO FEMALE WITH HEXAGON FLANGE |
