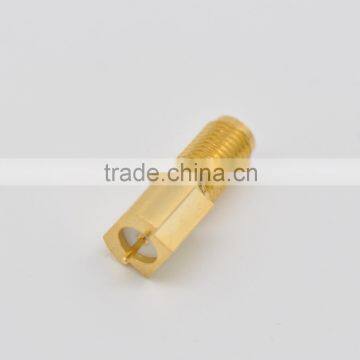

SMA Femal Smd Type SMA Connectors Female for Pcb

SMA jack bulkhead for cable

SMA type plug sand connectors are a threaded coupling mechanism designed to provide high electrical performance for microwaveapplications up to 18GHZ.SMA connectors ensure excellent durability and mechanical strength.

1.  ELECTRICAL

Impedance: 750W nominal

Frequency Range: 0~6GHz

Rating Voltage: 500V

Dielectric Withstanding Voltage: 1500V

Contact Resistance: 3.0 mW MAX

Insulation Resistance: 5000 MW MIN.

2.  GENERAL CHARACTERISTICS

Storage Temperature:             -40°C to 85°C

Operating Temperature:          -40°C to 85°C

SMA connector SMA male adaptor good quality 6G

Cable assembly available

IPEX Cable Assembly and RF connector with RF cable assembly end......

IPEX connector 20278 male  for cable......

IPEX CONNECTOR 1) 0.81

2) 1.13 3) 1.32

1.  ELECTRICAL

Frequency Range                    0-1GHz

Impedance                                50 Ω

Insertion Loss                          1.0dB Max

2.  GENERAL CHARACTERISTICS

Open/Short Test: 100%

Hi-pot Test 300V: 100%

Connector Pull Force: 1.5kgf

Sweep Test: 30 degree (left, right, front, back) 2 cycles.

Storage Temperature:             -40°C to +85°C

4. Rohs:

All the components of this connector are compliant with European directive 2002/95/CE”.

BNC connectors are characterized by their 2-stud quick connect/disconnect bayonet coupling arrangement.

They are one of the most popular of the coaxial connector and are suitable for a wide range of systems,including Radio Telecommunication systems,Medical Equipment,Computer Networks,Safety&Security and test instrumentation.Available in 50Ω,75Ω,and 50Ω reverse polarity.
