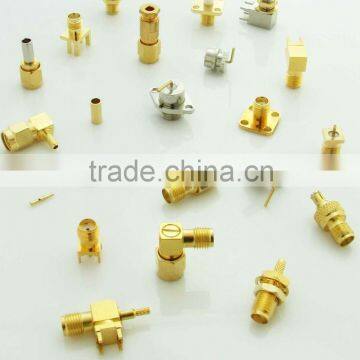

SMA series, SMA connector, RF SMA
Negotiable
1 (Min. Order)
You May Like
-
0803 RF SMA R/A jacks SMA female,SMA JACK for PCB
-
50 ohms SMA-JK good quality SMA adaptor good performance SMA gender male to gender female connector adaptor 12GHz VSWR<0.3
-
SMA femal smd type SMA connectors female for pcb
-
0803 02 01female SMA connector right angle to PCB mounting good quality SMA jack Right angle SMA receptacle
-
0801 4G Hz High performance good price SMA jack SMA female connector to pcb end launch edge pcb
-
0803.09.02 High performance good price SMA RA jack SMA female connector to pcb right angle long neck
Product Details
| Place of Origin | Guangdong, China | Brand Name | EASTRON | |
| Model Number | SMA | Type | SMA | |
| Application | PCB | Gender | Female |
Product Description
SMA connector are 50 OHM impedance connector features a threaded couping.
Characteristics:
- Bandwidth: 0-12.4GHZ on Flexible Cable
- Impedance: 50Ohm
Applications:
- Telecom
- Antennas
- Radios
- Broadcast
- Coaxial cable
- CCTV
Parameter sheet :
Temperature Range | -40~+60 PE cable -40~+85) |
Impedance | 75ohm |
Frequency Range | 0-1G |
Center conductor withdrawl force | 0.49N |
Working Voltage | 170Max |
Contact Resistance | Inner:6miliohms max Outer:1 miliohms max |
VSWR | straight:1.2max,R/A:1.3max |
Insulation resistance | 1000 miliohms |
Withstand Voltage(At the sea level) | 750V |
Durability | 500cycles |
Authentication | ISO9001: 2000, 14001: 2004 RoHS |
APPLICABLE STANDARD | IEC169-15 MIL-C-39012 |
Product Group
roduction Line View
Inspection View
Quality
- QC/Technical Support
We possess digital calipers, digital micrometers, thread and pin gauges, tool microscopes, pitch diameter micrometers, height gauges, profile projectors, hardness testers, ohm testers and push/pull testers.
- Awards & Other Recognitions
We are ISO 9001:2008 certified
Profile
Each of our staff members possesses a college degree, and on average, they each have 4 years of experience.
