api wcb gate valve

FOB Price

USD $150.76 - $150.76 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Gate
Pressure	Other, 600LB	Power	Other, handle,Gear,Pneumatic,electrc Actuator,etc.
Material	Stainless Steel	Temperature of Media	Other, -68~560
Media	Other, water,gas,oil	Place of Origin	Zhejiang, China
Brand Name	China Dongjin

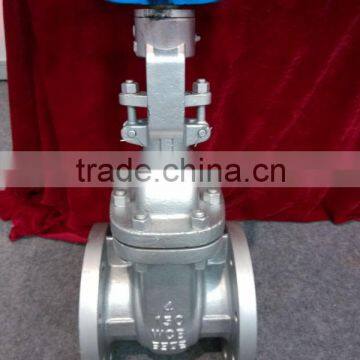

API WCB Gate Valve ANSI flanged gate valve (Flanged gate valve 150LB,gate valve)

1.Material:CF8,CF3,CF8M,CF3M WCB.

2.End connection: RF flanged end, RTJ flanged end.

3.ANSI,GB,JIS,DIN,standard

4.Size:1/2"~18"

5.Pressure:150LB-2500LB

6.Temperature:-40-425C

7.Medium:Water,Oil,Gas,Acid,etc.

8.Unit price:1/2" SS304 150LB:38.21USD/PC FOB price on Shanghai port.

Flanged gate valve

Standard Criteria *	ASME/ANSI/API JIS customize
Pressure Rating *	150 Class 300 Class 400 Class 600 Class 10 K 20 K customize
Valve Size *	15 mm 20 mm 25 mm 32 mm 40 mm 50 mm 65 mm 80 mm 100 mm 125 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 450 mm 500 mm 600 mm 0.5 inch 0.75 inch 1 inch 1.25 inch 1.5 inch 2 inch 2.5 inch 3 inch 4 inch 5 inch 6 inch 8 inch 10 inch 12 inch 14 inch 16 inch 18 inch 20 inch 24 inch customize
Actuator *	Gear Handwheel customize
Connection *	Flange customize
Medium *	Acetic Acid Nitric Acid Oil Steam Strong Oxidizing Urea Water customize
item	L	H	D0	WT(kg)
value	Dimension values show up after you specify above parameter with *.
Medium Temperature *	<200 <425 <540 <570 customize
Application Fields *	Electricity Petrochemical Power Station customize
Body Material *	WC6 CF3M WC9 CF8 WCB CF3 CF8M customize
Material of Valve Seat *	D507Mo+25 WC9+Stellite6 F316L F304 F304L F316 Stellite6+WC6 customize
Bonnet *	CF3 WCB WC6 WC9 CF8M CF3M CF8 customize
Wedge *	Stellite12+WCB WC9+Stellite12 F304L CF8 CF8M CF3M Stellite12+WC6 customize
Stem *	F304 F304L F316L 25Cr2Mo1VA F316 410 customize
Packing *	flexible graphite PTFE customize
Design Standard *	API STD.600 customize
Connection Standard *	ANSI B 16.5 JIS B 2212 JIS B 2213 JIS B 2214 customize
Test Standard *	API 598 customize
Face to Face *	ANSI B 16.10 customize

Dongjin Valve Co., Ltd.: Contact nameJean Wei
Chat Now; Phone86-577-85885828; AddressNo.158-1 Fuhai Road,Haibin Industry Longwan district , Wenzhou, Zhejiang
