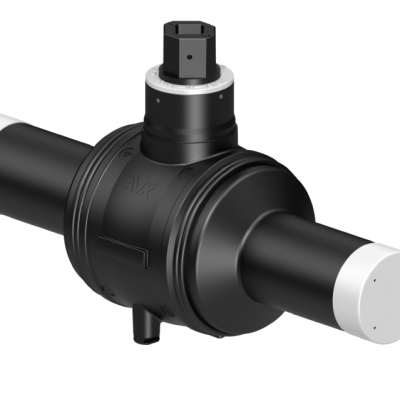

PE standard ball valve

The application scope of PE standard ball valve covers many fields such as gas, water supply, municipal engineering, chemical industry, etc., and its all-plastic structure, corrosion resistance and convenient installation characteristics make it the core component of pipeline control.
Urban medium and low voltage pipe network
As a key shut-off valve for buried PE pipelines, it is used for the transportation control of natural gas, liquefied petroleum gas (LPG), artificial gas and other media.
Gas appliance connection
It is used in the front valve of the gas meter, the inlet and outlet of the pressure regulating box, etc., to achieve rapid cut-off during equipment maintenance. The double-release design avoids the risk of pressure build-up during operation.
Municipal water supply network
It is used in the main pipe branch, in front of the household water meter in the community, etc., to achieve flow control and maintenance isolation. DN110-DN315 ball valves can be adapted to the diameter of municipal water supply pipes, and support electric or hot melt connection.
Agricultural irrigation and garden sprinkler
The large diameter design (DN63-DN200) effectively reduces water resistance and improves irrigation efficiency. The iron handle operation design (such as the Zhuotong iron handle large flow ball valve) is convenient for frequent outdoor opening and closing, and is suitable for the open air environment.
Emergency repairs
?Technical features: Quick-connect ball valves (such as Zhuotong PE fast three-way ball valves) can repair pipeline damage without water interruption and reduce the impact of water outage.
Corrosive media conveying
It is used in acid and alkali liquid pipelines in chemical workshops and sewage treatment plants to extend valve life by using the chemical resistance of PE materials.
Petroleum & Petrochemical Industry
It is used as a shut-off valve in the underground oil pipeline of gas station and crude oil transportation pipeline of chemical plant to avoid the risk of corrosion of metal valves. Compatible with SDR11/SDR17.6 pipes, it can be seamlessly connected with steel-plastic adapters.
1. Directly buried installation and maintenance-free
There is no need for a valve well, it can be buried directly, and the ground can be opened and closed through the sheath and operating cap, reducing the civil construction cost. Corrosion-free design (no painting or cathodic protection required) reduces maintenance effort and complies with CJJ63-2008 construction specifications.
The operating cap is marked with opening and closing direction to reduce the risk of human operation. Temperature cycle test from -20°C to 40°C and impact test to ensure stability in extreme environments.
2. Fast connection and compatibility
It supports electrofusion/hot melt connection with PE pipes, and transitions with metal pipes through steel-plastic conversion joints to achieve seamless connection of all-plastic systems.
Food and pharmaceutical industry: The non-toxic and odorless characteristics of PE material make it suitable for pure water pipelines in food processing workshops, sterile fluid control in pharmaceutical production, and meet sanitary standards.
New energy field: In hydrogen energy transmission pipelines, the anti-hydrogen embrittlement performance of PE ball valves can avoid the risk of hydrogen corrosion of metal valves, and has become a potential application scenario.
