Home > Products > Gate Valve > Electric Actuated Wedge Gate Valves

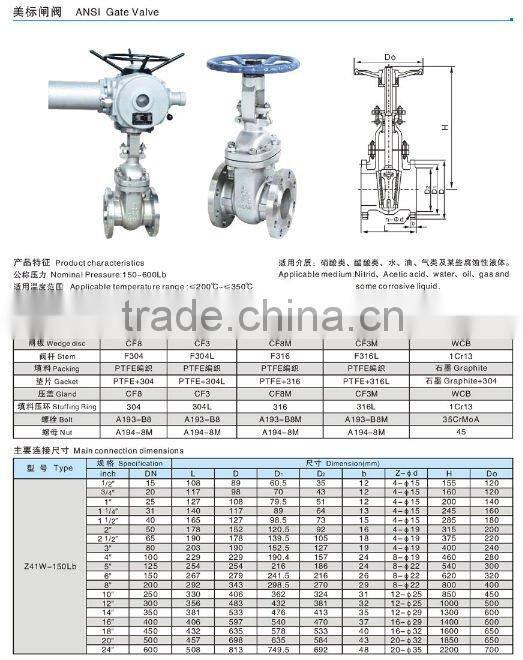

Electric Actuated Wedge Gate Valves
- Ningbo/Shanghai
- T/T D/P D/A Money Gram
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | 1/2"-26" | |
| Place of Origin | Zhejiang, China | Model Number | Z941H-150LB | |
| Brand Name | Dongjin |
Product Description
Specifications
Electric Actuated Wedge Gate Valves2.material: SS,CS,CI
3.Certificate:ISO9001,CE,API
4.Standard:ANSI,GB,JIS
5.Wooden box
Electric Actuated Wedge Gate Valves
· Administer Standard
Design And Manufacture | Face to face/ | Flange Dimension | Butt welding dimension | Pressure temperature Lating | Lnspection |
API 600 | ANSI B16.10 | ANSI B16.5 | ANSI B16.25 | ANSI B16.34 | API 598 |
API 6D | API 6D | ANSI B16.5 | ANSI B16.25 | ANSI B16.34 | API 6D |
· Pressure Test
Nominal Pressure | Shell Test | water Seal Test | Air Seal Test | |||
MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
150 | 3.0 | 430 | 2.2 | 315 | 0.4-0.7 | 60-100 |
300 | 7.7 | 1110 | 5.7 | 815 | ||
600 | 15.3 | 2220 | 11.3 | 1630 | ||
900 | 23.0 | 3330 | 17.0 | 2445 | ||
1500 | 38.4 | 5560 | 28.2 | 4080 | ||
2500 | 64.0 | 9255 | 47.0 | 6790 | ||
· Main Part Materials and Property
Body Cover Disc | Stem | Sealing Face | Sealing Shin | Packing | Working Temperature | Suitable Medium |
WCB | F6a | With Body | Enhanced | Flexible | ≤425°C | Water |
WC1 | F11 | ≤450°C | ||||
WC6 | ≤540°C | |||||
WC9 | ≤570°C | |||||
C5 C12 | ≤540°C | |||||
CF8 | F304 | ≤200°C | Nitric acid | |||
CF8M | F316 | |||||
CF3 | F304L | |||||
CF3M | F316L |
