API Flanged Gate Valve
- Shanhhai or Ningbo
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Other, 150LB-900LB | Power | Other, handle operated,gear operated,Pneumatic actuator | |
| Material | Other, Stainless steel,cast steel | Temperature of Media | Other, 180C-425C | |
| Media | Other, Water,Gas,Oil,Acid | Place of Origin | Zhejiang, China | |
| Model Number | Z41W-150LB | Brand Name | China Dongjin |
Product Description

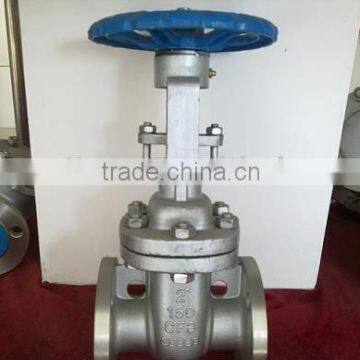

API flanged gate valves
nnection type: screwed end, flanged
.
2.Class:150LB .300LB.600LB
3.Design and manufacture:API603
4.End flanged dimension:ASME B16.5
5.Face to face:ASME B16.10
6.Pressure-temperature ratings:ASME B16.34
7.Used for water.oil.gas. and some corrodible fluid;
8.material: SS304, SS316
9.ANSI flanged gate valve (Flanged gate valve 150LB,stainless steel gate valve)
| Material List | |||
| NO | Part Name | Material | |
| 1 | Body | WCB | CF8M |
| 2 | Cap | WCB | CF8M |
| 3 | Seat | PTFE | RPTFE |
| 4 | Ball | SS304 | SS316 |
| 5 | Seal Gasket | PTFE | |
| 6 | Stem Seal | PTFE | |
| 7 | Stem | SS316 | |
| 8 | Anti-Static Device | SS304 | |
| 9 | Stem Packing | PTFE | |
| 10 | Packing Gland | SS304 | |
| 11 | Spring washer | SS304 | |
| 12 | Handle | SS304 | |
1.Our company established in 1985, we have 30 years of production experience.
2.We supply valves for Dongjin with high quality and competitive price.
Dongjin has acquired ANSI,API,JIS,BS,,DIN,GB and CE PED approvals as well.
Welcome to inquiry.
