Home > Products > Gate Valve > Gate Valve 900LB
Gate Valve 900LB
US$ 12 - 680
/ Set
1 Set(Min. Order)
- Ningbo/Shanghai
- T/T D/P D/A
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Stainless Steel | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | 1/2"-48" | |
| Place of Origin | Zhejiang, China | Model Number | flanged | |
| Brand Name | Dongjin |
Product Description
Specifications
1.Gate valve 900LB2.Standard:ANSI,JIS,DIN
3.Certificate:ISO9001,API,CE
4.Package:wooden box
5.Material:SS,CS

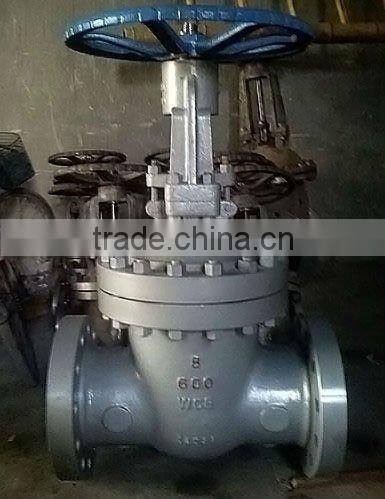

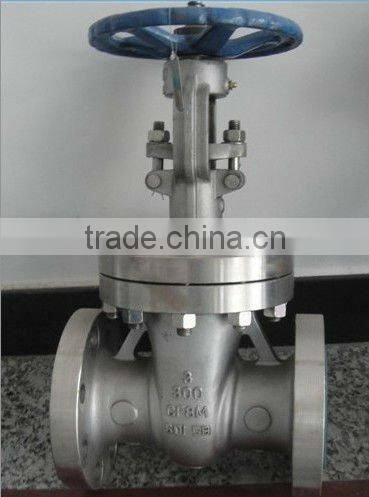

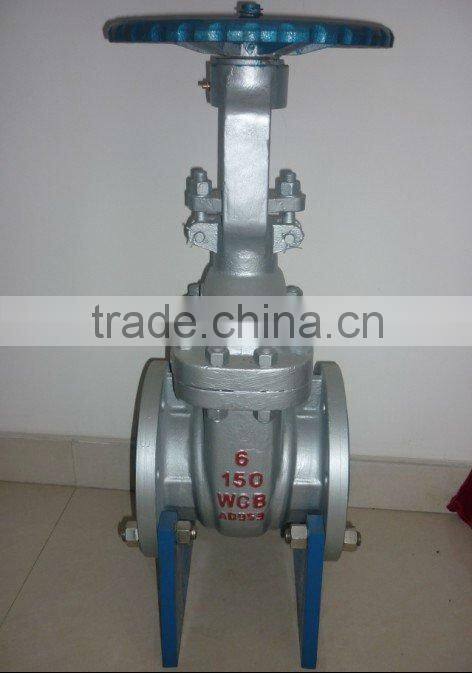

Gate valve 900LB
ANSI Gate Valve 150LB
| No.1 Chief features |
| 1.Full port,outside and screw and youke(os&y) |
| 2.Bolted bonnet |
| 3.Flexible wedge,fully guided |
| 4.Rising stem and non-rising handwheel |
| 5.Available with gear operator |
| 6.Flanged ends |
| 7.Butt-welding |
| duct specification | design spec. | face to face | flange end | test&check | marking | supply | |
| API600 | ANSI B16.10 | ANSI B16.5 | API 1598 | API16D | API1600 | ||
| APD16D | APD16D | API16D | MS SP-25 | ||||
| No.3 main part material | |||||||
| part name | part material | ||||||
| body/bonnet | A-216-WCB | A217-WC6 | A352-LC8 | A351-CF8M | |||
| disc | A-216-WCB | A217-WC6 | A352-LC8 | A351-CF8M | |||
| stem | A182-F6a | A182-F11 | A182-F6a | A182-F316 | |||
| packing | flexible graphite | PTFE | |||||
| gasket | Flexible graphite | ||||||
| bolt | A193-B7 | A193-B7 | A193-B7M | A193-B8 | |||
| suitable medium | water,oil,steam | steam,oil | steam,oil | Nitric Acid | |||
| suitable temp. | -29~425°C | -29~550°C | -46~350°C | -40~200°C | |||
