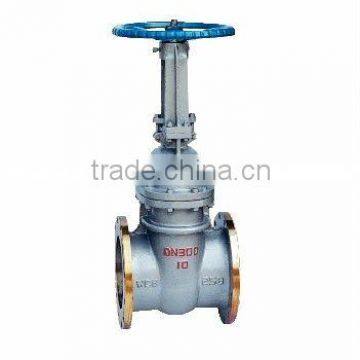

DIN gate valve

FOB Price

USD $6.8 - $880 / Set

1 Set(Min.Order)

Port Shanghai or Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Gate
Pressure	High Pressure	Power	Manual
Material	Stainless Steel	Temperature of Media	Medium Temperature
Media	Acid	Port Size	DN6-DN1000
Place of Origin	Zhejiang, China	Model Number	J41H-16C
Brand Name	Dongjin

Product Description

Specifications

DIN gate valve
1.Model:Z41W-150LB
2.Pressure:PN16-PN100
3.Size: DN15-DN800
4.ISO9001:2008,CE .API approved

DIN gate valve
1, Both design and manufacture are carried out strictly following GB/T12234, API600, API602. The products feature a reasonable structure, reliable seal, good performance and nice modeling.
2, Co hard alloy welded sealing surface, which is wearing resistant, erosion proof, abrasion proof and long-lived.
3, The surface and the adjusting media of the valve shaft are nitrogenized so that it is erosion and abrasion resistant.

4, PN≥ 15.0MPa(Class900), the middle cavity uses a self-tightening sealing structure to have the sealing performance reinforced along with the pressure rise so as to ensure the sealing performance.
5, There is no backward sealing structure in the valve, so the sealing ID reliable.
6, The material of the filling and the flange size can be chosen and matched according to the applications and the requirements of the use's. That can satisfies all kinds of working requirements.

Standard Criteria *	ASME/ANSI/API JIS customize
Pressure Rating *	150 Class 300 Class 400 Class 600 Class 10 K 20 K customize
Valve Size *	15 mm 20 mm 25 mm 32 mm 40 mm 50 mm 65 mm 80 mm 100 mm 125 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 450 mm 500 mm 600 mm 0.5 inch 0.75 inch 1 inch 1.25 inch 1.5 inch 2 inch 2.5 inch 3 inch 4 inch 5 inch 6 inch 8 inch 10 inch 12 inch 14 inch 16 inch 18 inch 20 inch 24 inch customize

Actuator *	Gear Handwheel customize
Connection *	Flange customize
Medium *	Acetic Acid Nitric Acid Oil Steam Strong Oxidizing Urea Water customize

item	L	H	D0	WT(kg)
value	Dimension values show up after you specify above parameter with *.

Medium Temperature *	<200 <425 <540 <570 customize
Application Fields *	Electricity Petrochemical Power Station customize

Body Material *	WC6 CF3M WC9 CF8 WCB CF3 CF8M customize
Material of Valve Seat *	D507Mo+25 WC9+Stellite6 F316L F304 F304L F316 Stellite6+WC6 customize
Bonnet *	CF3 WCB WC6 WC9 CF8M CF3M CF8 customize
Wedge *	Stellite12+WCB WC9+Stellite12 F304L CF8 CF8M CF3M Stellite12+WC6 customize
Stem *	F304 F304L F316L 25Cr2Mo1VA F316 410 customize
Packing *	flexible graphite PTFE customize

Design Standard *	API STD.600 customize
Connection Standard *	ANSI B 16.5 JIS B 2212 JIS B 2213 JIS B 2214 customize
Test Standard *	API 598 customize
Face to Face *	ANSI B 16.10 customize
