Home > Products > Blower fan > blower fan 75*75*30mm

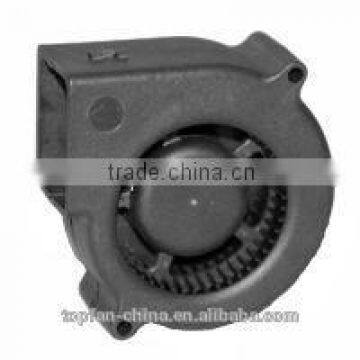

blower fan 75*75*30mm
USD $1 - $15
/ Piece
500 Pieces(Min.Order)
- 700 Piece / Pieces per Month
- SZ/Hongkong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | topfan | |
| Model Number | YM0507PFGS(B)1 | Application | Fan Blower | |
| Type | Centrifugal Blower | Pressure | High Pressure | |
| Power Source | Electric Blower | Rated Power | 3.12~4.80W | |
| Rated Voltage | 12/24V |
Product Description
Specifications
Blower fan: ball&sleeve bearing1. Impeller:Plastic(UL94V-0)
2. Size: 75*75*30mm
3. CE,UL,TUV passed
4. Hign speed and quiet
Tool power blower fan 75*75*30mm:
Size: 75*75*30mm
| Size(mm) | Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 75*75*30 | YM1207PIS(B)1 | 12 | 7.0 to 13.8 | 0.4 | 4.8 | 4000 | 15.9 | 0.68 | 46 | 69 |
| YM1207PIS(B)2 | 12 | 7.0 to 13.8 | 0.31 | 3.72 | 3500 | 13.7 | 0.56 | 40 | 69 | |
| YM2407PIS(B)1 | 24 | 14.0 to 27.6 | 0.22 | 5.28 | 4000 | 15.9 | 0.68 | 46 | 69 | |
| YM2407PIS(B)2 | 24 | 14.0 to 27.6 | 0.13 | 3.12 | 3500 | 13.7 | 0.56 | 40 | 69 |
1. Voltage: 5/12/24 DVC
2. Ball bearing 50,000hours; Sleeve bearing 30,000hours
3. Water / dust proof
4.. CE,UL,ROHS,TUV CETIFICATED
5. Large volume flow and long life time expectancy
6. Allowable Ambient Temperature Range:
1). -100C~+700C (Operating)
2). -400C~+700C (Storage)
3). non-condensing environment
General Specification
| Impeller | Plastic(UL94) |
| Bearing Type | Sleeve Bearing & Bual Ball Bearing |
| Leadwire | UL1007AWG24 or Equivalent (+): Red (-0 Black |
| Motor | Impedance Protected and Reverse Polarity Protected |
More detail information, please contact with me as soon as possible ! Thanks
