10mm thick DC Brushless Fan 40x40x10mm

FOB Price

US$ 1 - 15 / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	Other, computer case, power supply, RAM	Type	Fan
Heatsink Material	Other, cooling fan	Brand Name	YM
Model Number	YM1204PFS(B)1	Place of Origin	Guangdong, China

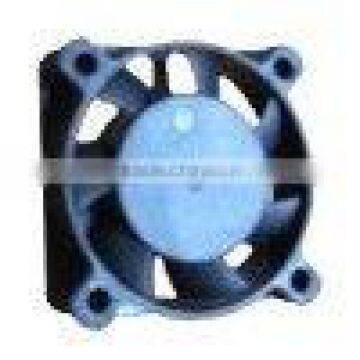

Discription of CE,ROHS 12V dc fan YM4010 for computer appliances:

Fan Size: 40 X 40 X 10mm

Fan Features:

Size(mm)	Model	Rated voltage (v)	Operating Voltage Range(v)	Current amp (Amp)	Rated Input Power Watt	Speed (rpm)	Max air Flow(CFM)	Max Static Pressure (Inch-H2o)	Noise Leve (dB-A)	Weight (g)
40 40 X10	YM1204PFS(B)1	12	7.0 to 13.8	0.07	0.84	6500	6.80	0.12	35	16.00

Detail introduction

1. Expexted life

1). Ball Bearing 50,000 hours(40⁰C)

2). Sleeve Bearing 30,000 hours(40⁰C)

2. Allowable Ambient Temperature Range:

1). -10⁰C~+70⁰C (Operating)

2). -40⁰C~+70⁰C (Storage)

3). non-condensing environment

General Specification

Model	YM1204PFS(B)1
Frame	Plastic(UL94V-0)
Impeller	Plastic(UL94V-0)
Bearing Type	Sleeve Bearing & Bual Ball Bearing
Leadwire	UL1007AWG24 or Equivalent (+): Red (-0 Black
Motor	Impedance Protected and Reverse Polarity Protected

Our Series of computer cooling fan 40 X 40 X 10mm
