Home > Products > Brushless fan > 15x15x04mm DC Small Mirco Fans / Small Brushless Fans
15x15x04mm DC Small Mirco Fans / Small Brushless Fans
US$ 1 - 10
/ Piece
2000 Pieces(Min. Order)
- shenzhen / hongkong
- Credit Card
You May Like
-
Mirco Brushless Axial Cooler Fan 15*15*4mm 3.3V 5V DC
-
The High Temperature and High Speed Brushless Fan 172mm
-
12V DC Air Conditioner Brushless Fan 80mm
-
High Temperature 12V/24V Brushless Fan /Waterproof Explosion Proof Exhaust Fan 92x92x32mm
-
4.7 Inch High Temperature dc Blower Fan 120x120x32mm
-
20x20x10 High Speed dc Brushless Axial Fan
Product Details
| Place of Origin | Guangdong, China | Brand Name | MX/topfan | |
| Model Number | MX1504ANH5 | Application | Fan Blower | |
| Type | Centrifugal Blower | Pressure | Low Pressure | |
| Power Source | Electric Blower | Rated Power | 0.21W | |
| Rated Voltage | 5V |
Product Description

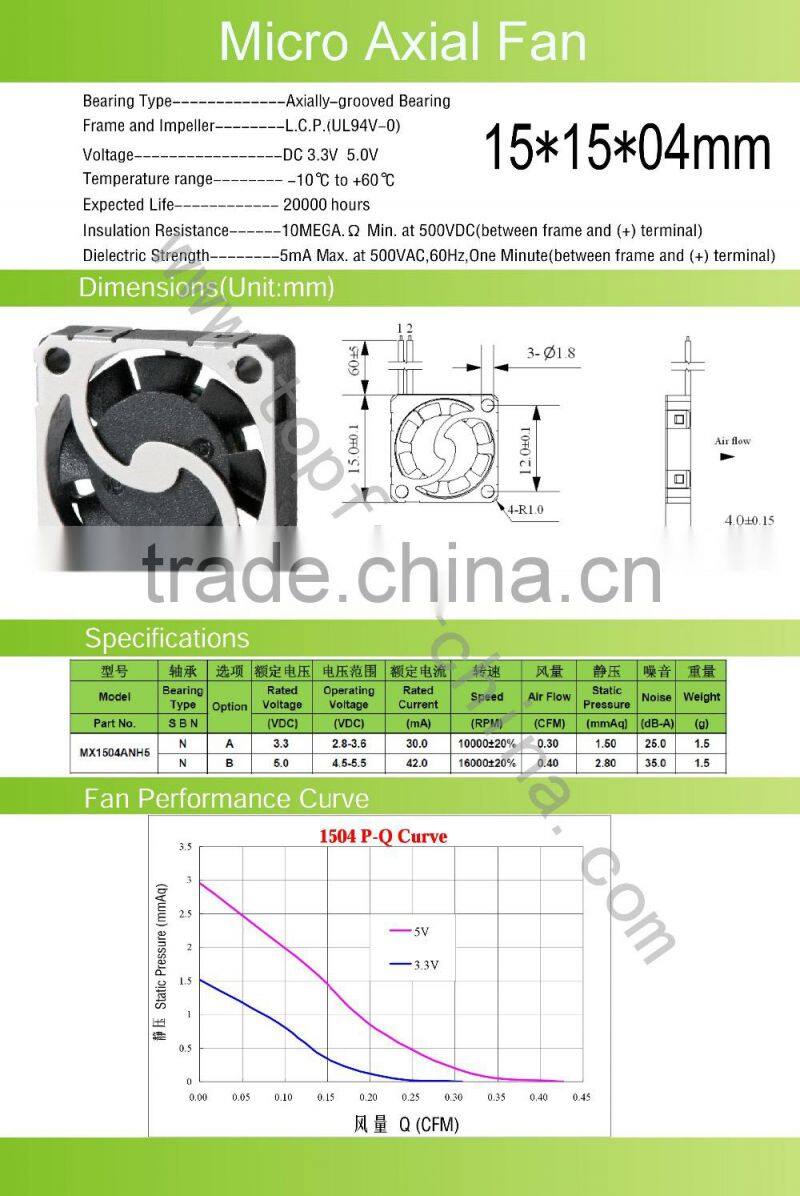

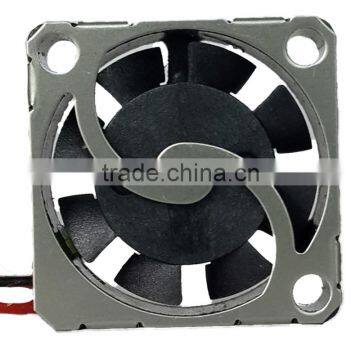

15x15x04mm DC small mirco fans / Small Brushless fans
1. Frame: Plastic(UL94V-0)
2. Impeller: Plastic(UL94V-0)
3. Bearing type: Axially-Grooved Bearing
4. Leadwire: UL1571AWG#28 or Equipment (+): Red (-): Black
5. Motor: Impedence Protected and Reverse Protected
1) Size: 15x15x04mm
2) Voltage: 5V
4) Expexted Life: 20,000 hours
5)widly used in the mechinery production equipment
