Home > Products > Brushless fan > Brushless dc Fans 120mm

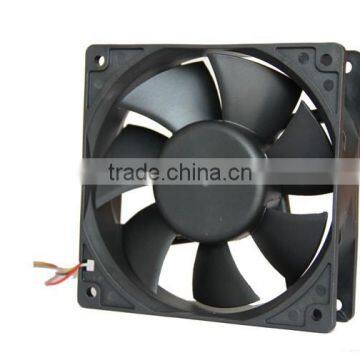

Brushless dc Fans 120mm
US$ 1 - 3
/ Piece
1000 Pieces(Min. Order)
- Shenzhen
You May Like
-
DC Explosion Proof axial Fan / 92*92*38mm 3.7 INCH Motor Fan waterproof IP58 IP68
-
20*20*10mm high air flow ventilation fan / dc cooling axial fan 5v 12v
-
92*92*38mm 12V/24V/48V DC Explosion Proof Fan / 3 Blade 92mm PWM Cooling Motor Fan
-
DC Brushless 40mm fans
-
12V dc brushless fan 80x80x15mm
-
Equipment brushless fan 70mm length with PWM,FG,RD Function
Product Details
| Electric Current Type | DC | Mounting | Roof Fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | topfan/OEM | Model Number | YM4812PMB1 | |
| Voltage | 48V | Power | 7.68W | |
| Air Volume | 120.07CFM | Speed | 3000RPM | |
| Certification | ROHS |
Product Description
Sleeve bearing DC Brushless Fan:
| Size | Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Air Flow | Static Pressure | Noise | Weight |
| (mm) | (VDC) | (VDC) | (AMP) | (Watt) | (RPM) | (CFM) | (Inch-H2O) | (dBA) | (g) | |
| 120×120×38 | YM1212PMB1 | 12 | 7.0 to 13.8 | 0.51 | 6.12 | 3000 | 120.07 | 0.42 | 48 | 262 |
| YM1212PMB2 | 12 | 7.0 to 13.8 | 0.38 | 4.56 | 2700 | 105.94 | 0.37 | 43 | 262 | |
| YM1212PMB3 | 12 | 7.0 to 13.8 | 0.27 | 3.24 | 2400 | 95 | 0.33 | 38 | 262 | |
| YM2412PMB1 | 24 | 14.0 to 27.6 | 0.31 | 7.44 | 3000 | 120.07 | 0.42 | 48 | 262 | |
| YM2412PMB2 | 24 | 14.0 to 27.6 | 0.25 | 6 | 2700 | 105.94 | 0.37 | 43 | 262 | |
| YM2412PMB3 | 24 | 14.0 to 27.6 | 0.15 | 3.6 | 2400 | 95 | 0.33 | 38 | 262 | |
| YM4812PMB1 | 48 | 28.0 to 56.0 | 0.16 | 7.68 | 3000 | 120.07 | 0.42 | 48 | 262 | |
| YM4812PMB2 | 48 | 28.0 to 56.0 | 0.13 | 6.24 | 2700 | 105.94 | 0.37 | 43 | 262 | |
| YM4812PMB3 | 48 | 28.0 to 56.0 | 0.09 | 4.32 | 2400 | 95 | 0.33 | 38 | 262 |
