Home > Products > Brushless fan > 12v brushless fan 80 x 80 x 20mm

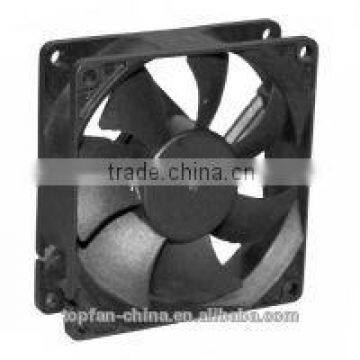

12v brushless fan 80 x 80 x 20mm
USD $1 - $8
/ Piece
500 Pieces(Min.Order)
- 700 Piece / Pieces per Month
- SZ
- T/T
You May Like
Product Details
| Electric Current Type | DC | Mounting | Other, Built-in cooling fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | topfan | Model Number | YM1208PKS(B)3 | |
| Voltage | 12V | Power | 1.20W | |
| Air Volume | 25.93CFM | Speed | 2000rpm | |
| Certification | CCC, CE, ROHS, UL, CE, Other, UL, CCC, CE, ROHS, UL, CE, ISO9000, UL, TUV, RoHS |
Product Description
Specifications
CE approved dc fan 80 x 80 x 20mm1.Wildly used in industrial equipment
2.The newest smart fan
3.CE, ISO, UL, TUV, RoHS
Discription of CE approved ac fan 80 x 80 x 20mm
1. Expexted life
1). Ball Bearing 50,000 hours(400C)
2). Sleeve Bearing 30,000 hours(400C)
2. Allowable Ambient Temperature Range:
1). -100C~+700C (Operating)
2). -400C~+700C (Storage)
3). non-condensing environment
General Specification
| Model | YM1208PKS(B)3 |
| Frame | Plastic(UL94V-0) |
| Impeller | Plastic(UL94V-0) |
| Bearing Ball | Sleeve Bearing & Bual Ball Bearing |
| Leadwire | UL1007AWG24 or Equivalent (+): Red (-0 Black |
| Motor | Impedance Protected and Reverse Polarity Protected |
Product Features
| Size(mm) | Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 80 *80 * 20 | YM1208PKS(B)3 | 12 | 7.0 to 13.8 | 0.1 | 1.2 | 2000 | 25.9 | 0.16 | 20 | 58 |
Our Series of 80 x 80 x 20mm
| Size(mm) | Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 80 *80 * 20 | YM1208PKS(B)1 | 12 | 7.0 to 13.8 | 0.18 | 2.16 | 3000 | 38.9 | 0.24 | 31 | 58 |
| YM1208PKS(B)2 | 12 | 7.0 to 13.8 | 0.13 | 1.56 | 2500 | 32.4 | 0.2 | 25 | 58 | |
| YM1208PKS(B)3 | 12 | 7.0 to 13.8 | 0.1 | 1.2 | 2000 | 25.9 | 0.16 | 20 | 58 | |
| YM2408PKS(B)1 | 24 | 14.0 to 27.6 | 0.13 | 3.12 | 3000 | 38.9 | 0.24 | 31 | 58 | |
| YM2408PKS(B)2 | 24 | 14.0 to 27.6 | 0.1 | 2.4 | 2500 | 32.4 | 0.2 | 25 | 58 | |
| YM2408PKS(B)3 | 24 | 14.0 to 27.6 | 0.07 | 1.68 | 2000 | 25.9 | 0.16 | 20 | 58 | |
| YM4808PKS(B)1 | 48 | 28.0 to 56.0 | 0.08 | 3.84 | 3000 | 38.9 | 0.24 | 31 | 58 | |
| YM4808PKS(B)2 | 48 | 28.0 to 56.0 | 0.07 | 3.36 | 2500 | 32.4 | 0.2 | 25 | 58 | |
| YM4808PKS(B)3 | 48 | 28.0 to 56.0 | 0.04 | 1.92 | 2000 | 25.9 | 0.16 | 20 | 58 |
