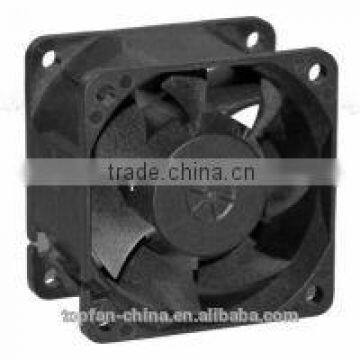

dc axial fan 60x60x38mm

FOB Price

USD $1 - $15 / Piece

500 Pieces(Min.Order)

Supply Ability 700 Piece / Pieces per Month
Port SZ/Hongkong
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	DC	Mounting	Other, box fan
Blade Material	Plastic	Place of Origin	Guangdong, China
Brand Name	yimeng	Model Number	YM
Voltage	12/24/48V	Power	detail information below
Air Volume	detail information below	Speed	detail information below
Certification	CE, UL, ROHS, Other, CE,UL,ROHS,TUV

Product Description

Specifications

"Z" series dc brushless cooling fan
Hign air pressure and air flow
CE,UL,TUV passed
Hign speed low noise
water/dust proof

axial dc fan "Z" series, dc brushless cooling fan:

Size: z60*60*38mm, Z80*80*38mm, Z92*92*38mm, Z120*120*38mm

Specifications:

Size(mm)	Model	Rated voltage (v)	Operating Voltage Range(v)	Current amp (Amp)	Rated Input Power Watt	Speed (rpm)	Max air Flow(CFM)	Max Static Pressure (Inch-H2o)	Noise Leve (dB-A)	Weight (g)
Z60 60 38	YM1206PMZB1	12	7.0 to 13.8	1	12	8000	50.2	0.97	55	85
	YM1206PMZB2	12	7.0 to 13.8	0.75	9	7000	43.4	0.77	51	85
	YM1206PMZB3	12	7.0 to 13.8	0.52	6.24	6000	36.7	0.52	47	85
	YM2406PMZB1	24	14.0 to 27.6	0.5	12	8000	50.2	0.97	55	85
	YM2406PMZB2	24	14.0 to 27.6	0.39	9.36	7000	43.4	0.77	51	85
	YM2406PMZB3	24	14.0 to 27.6	0.25	6	6000	36.7	0.52	47	85
	YM4806PMZB1	48	28.0 to 56.0	0.26	12.48	8000	50.2	0.97	55	85
	YM4806PMZB2	48	28.0 to 56.0	0.19	9.12	7000	43.4	0.77	51	85
	YM4806PMZB3	48	28.0 to 56.0	0.12	5.76	6000	36.7	0.52	47	85
Z80 80 38	YM1208PMZB1	12	7.0 to 13.8	0.86	10.32	5700	78.5	0.78	52.5	153
	YM1208PMZB2	12	7.0 to 13.8	0.56	6.72	5000	69.6	0.61	49.5	153
	YM1208PMZB3	12	7.0 to 13.8	0.38	4.56	4300	59.3	0.43	45.2	153
	YM2408PMZB1	24	14.0 to 27.6	0.43	10.32	5700	78.5	0.78	52.5	153
	YM2408PMZB2	24	14.0 to 27.6	0.27	6.48	5000	69.6	0.61	49.5	153
	YM2408PMZB3	24	14.0 to 27.6	0.19	4.56	4300	59.3	0.43	45.2	153
	YM4808PMZB1	48	28.0 to 56.0	0.22	10.56	5700	78.5	0.78	52.5	153
	YM4808PMZB2	48	28.0 to 56.0	0.14	6.72	5000	69.6	0.61	49.5	153
	YM4808PMZB3	48	28.0 to 56.0	0.1	4.8	4300	59.3	0.43	45.2	153
Z92 92 38	YM1209PMZB1	12	7.0 to 13.8	1.1	13.2	4800	110	0.67	55	166
	YM1209PMZB2	12	7.0 to 13.8	0.75	9	4400	100	0.57	53	166
	YM1209PMZB3	12	7.0 to 13.8	0.53	6.36	4000	89.9	0.43	50	166
	YM2409PMZB1	24	14.0 to 27.6	0.6	14.4	4800	110	0.67	55	166
	YM2409PMZB2	24	14.0 to 27.6	0.38	9.12	4400	100	0.57	53	166
	YM2409PMZB3	24	14.0 to 27.6	0.27	6.48	4000	89.9	0.43	50	166
	YM4809PMZB1	48	28.0 to 56.0	0.31	14.88	4800	110	0.67	55	166
	YM4809PMZB2	48	28.0 to 56.0	0.2	9.6	4400	100	0.57	53	166
	YM4809PMZB3	48	28.0 to 56.0	0.14	6.72	4000	89.9	0.43	50	166
Z12012038	YM1212PMZB1	12	7.0 to 13.8	2.1	25.2	4000	190	0.7	60	153
	YM1212PMZB2	12	7.0 to 13.8	1.6	19.2	3600	170	0.7	56	153
	YM1212PMZB3	12	7.0 to 13.8	1.05	12.6	3200	152	0.45	53	153
	YM2412PMZB1	24	14.0 to 27.6	1.05	25.2	4000	190	0.7	60	153
	YM2412PMZB2	24	14.0 to 27.6	0.85	20.4	3600	170	0.56	56	153
	YM2412PMZB3	24	14.0 to 27.6	0.6	14.4	3200	152	0.45	53	153
	YM4812PMZB1	48	28.0 to 56.0	0.55	26.4	4000	190	0.7	60	153
	YM4812PMZB2	48	28.0 to 56.0	0.4	19.2	3600	170	0.56	56	153
	YM4812PMZB3	48	28.0 to 56.0	0.3	14.4	3200	152	0.45	53	153

General Specification

Frame	Plastic(UL94V-0)
Impeller	Plastic(UL94V-0)
Bearing Type	Sleeve Bearing & Bual Ball Bearing
Leadwire	UL1007AWG24 or Equivalent (+): Red (-0 Black
Motor	Impedance Protected and Reverse Polarity Protected

More detail information , please contact with me . Thanks
