Home > Products > Brushless fan > 7 Inch 48v dc Fan 172*150*51mm

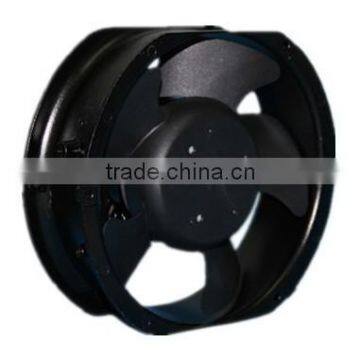

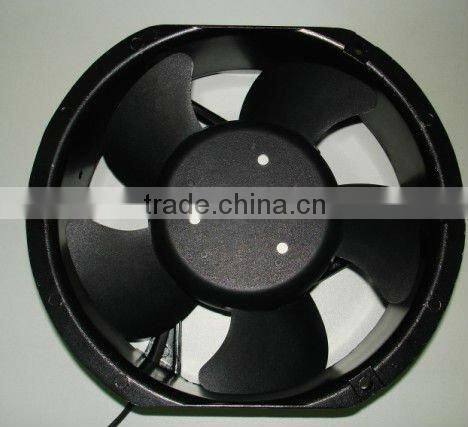

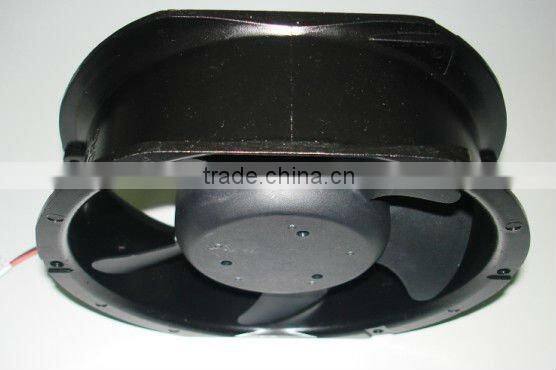

7 Inch 48v dc Fan 172*150*51mm
US$ 7 - 11
/ Piece
500 Pieces(Min. Order)
- shenzhen
You May Like
Product Details
| Electric Current Type | DC | Mounting | Other, cooling fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | ODM/OEM | Model Number | YM2417ANB1 | |
| Voltage | 12v/24V/48v | Power | 14.40W | |
| Air Volume | 205CFM | Speed | 3000RPM | |
| Certification | CE, CCC, UL, ROHS, Other, UL, CE, CE, CCC, UL, ROHS, ISO9000, UL ,CE, RoHS, TUV |
Product Description
Specifications
7 inch 172*150*51mm axial fan,motor protection,
low noise and long life expectancy,
plastic impeller,
dual ball bearing
7 inch dc cooling fan 172*150*51mm
General Specifications:
Frame | Die-cast Aluminum |
Impeller | plastic(UL94v-0) |
Bearing type | Dual Ball Bearing |
Leadwire | UL1007AWG#20 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |
Expected Life:
Ball Bearing 50,000 hours(40°c)
Specifications:
| Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| YM1217ANB1 | 12 | 7.0 to 13.8 | 1.05 | 12.6 | 2800 | 205 | 0.75 | 49 | 740 |
| YM1217ANB2 | 12 | 7.0 to 13.8 | 0.9 | 10.8 | 2500 | 183.34 | 0.67 | 44 | 740 |
| YM2417ANB1 | 24 | 14.0 to 27.6 | 0.6 | 14.4 | 3000 | 220 | 0.8 | 52 | 740 |
| YM2417ANB2 | 24 | 14.0 to 27.6 | 0.5 | 12 | 2700 | 195 | 0.72 | 47 | 740 |
| YM4817ANB1 | 48 | 28.0 to 56.0 | 0.38 | 18.24 | 3000 | 220 | 0.8 | 52 | 740 |
| YM4817ANB2 | 48 | 28.0 to 56.0 | 0.27 | 12.96 | 2700 | 195 | 0.72 | 47 | 740 |
