Home > Products > Brushless fan > 12V dc Brushless Fan 80x80x15mm

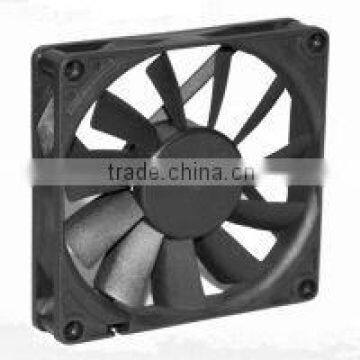

12V dc Brushless Fan 80x80x15mm
US$ 1 - 3
/ Piece
1000 Pieces(Min. Order)
- Shenzhen
You May Like
Product Details
| Electric Current Type | DC | Mounting | Roof Fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | topfan | Model Number | YM1208PHS(B)2 | |
| Voltage | 12V | Power | 2.76W | |
| Air Volume | 35CFM | Speed | 3000RPM | |
| Certification | ROHS |
Product Description
Sleeve bearing DC Brushless Fan:
| Size | Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Air Flow | Static Pressure | Noise | Weight |
| (mm) | (VDC) | (VDC) | (AMP) | (Watt) | (RPM) | (CFM) | (Inch-H2O) | (dBA) | (g) | |
| 80×80×15 | YM0508PHS(B)1 | 5 | 3.5 to 5.5 | 0.32 | 1.6 | 2500 | 29.17 | 0.11 | 28 | 54 |
| YM0508PHS(B)2 | 5 | 3.5 to 5.5 | 0.28 | 1.4 | 2200 | 26.15 | 0.1 | 26 | 54 | |
| YM0508PHS(B)3 | 5 | 3.5 to 5.5 | 0.16 | 0.8 | 2000 | 23.33 | 0.09 | 22 | 54 | |
| YM1208PHS(B)1 | 12 | 7.0 to 13.8 | 0.23 | 2.76 | 3000 | 35 | 0.14 | 33 | 54 | |
| YM1208PHS(B)2 | 12 | 7.0 to 13.8 | 0.13 | 1.56 | 2500 | 29.17 | 0.11 | 28 | 54 | |
| YM1208PHS(B)3 | 12 | 7.0 to 13.8 | 0.08 | 0.96 | 2000 | 23.33 | 0.09 | 22 | 54 | |
| YM2408PHS(B)1 | 24 | 14.0 to 27.6 | 0.1 | 2.4 | 3000 | 35 | 0.14 | 33 | 54 | |
| YM2408PHS(B)2 | 24 | 14.0 to 27.6 | 0.09 | 2.16 | 2500 | 29.17 | 0.11 | 28 | 54 | |
| YM2408PHS(B)3 | 24 | 14.0 to 27.6 | 0.08 | 1.92 | 2000 | 23.33 | 0.09 | 22 | 54 |
