Home > Products > Brushless fan > 10 Inch 48V DC Brushless Axial Motor Fan 254*89mm

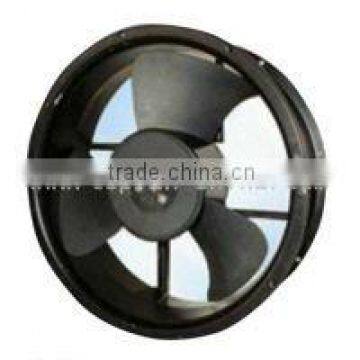

10 Inch 48V DC Brushless Axial Motor Fan 254*89mm
US$ 8 - 15
/ Piece
500 Pieces(Min. Order)
- shenzhen
You May Like
Product Details
| Electric Current Type | DC | Mounting | Other, cooling fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | MX/OEM/ODM | Model Number | MX25489ABH4 | |
| Voltage | 48V | Power | 67.2W | |
| Air Volume | 890CFM | Speed | 2600RPM | |
| Certification | Other, UL, CE, ISO9000, UL ,CE, RoHS, TUV | After-sales Service Provided | No overseas service provided |
Product Description

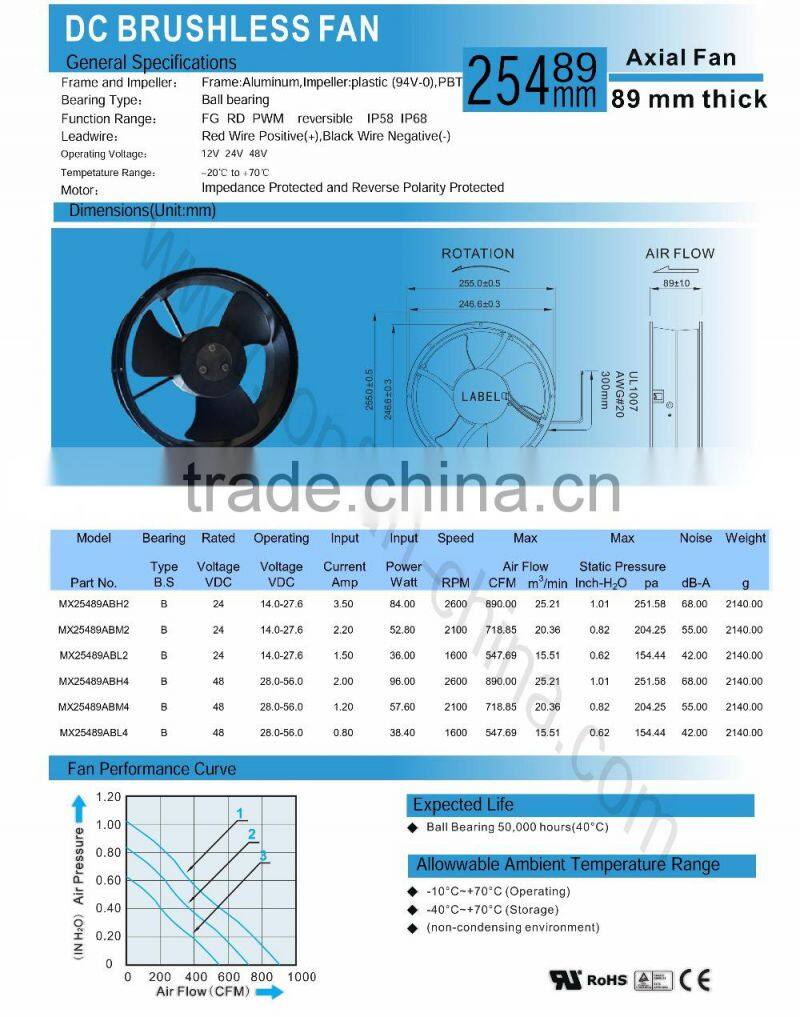

10 inch 48V DC Brushless Axial Motor Fan 254*89mm
Product Description
General Specifications:
Frame | Die-Cast Aluminum |
Impeller | plastic(UL94v-0) |
Bearing type | Dual Ball Bearing |
Leadwire | UL1007AWG#24 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |
Expected Life:
Ball Bearing 50,000 hours(40°c)
Specifications:
