Home > Products > Brushless fan > 25*25*07mm DC ventilator fan for industrial machine cooling

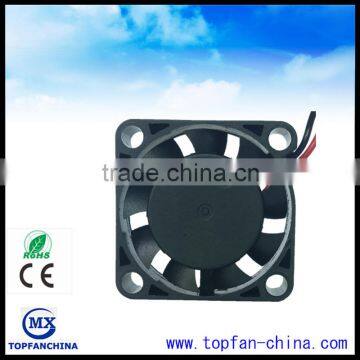

25*25*07mm DC ventilator fan for industrial machine cooling
US$ 1 - 3
/ Piece
1000 Pieces(Min. Order)
- Shenzhen/hongkong
- Credit Card
You May Like
Product Details
| Electric Current Type | DC | Mounting | Other, Cooling fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | YM | Model Number | YM0502PVS(C)1 | |
| Voltage | 5.00 | Power | 0.60 | |
| Air Volume | 2.20 | Speed | 10000, 10000 | |
| Certification | CE, ROHS, UL |
Product Description
DC industrial ventilator 25*25*07mm
1.Frame: Plastic(UL94V-0)
2.Impeller: Plastic(UL94V-0)
3.Bearing type: Sleeve Bearing & Dual Ball Bearing
4.Leadwire: UL1571AWG#28 or Equivalent (+): Red (-): Black
5.Motor: Impedence Protected and Reverse Polarity Protected
1) Size: 25 X 25X 07mm
2) Voltage: 5V 12V 24V
3) Sleeve Bearing & Dual Ball Bearing, high static pressure, low noise and long life time
4) Certification: ISO9000, UL ,CE, RoHS, TUV
1.Frame: Plastic(UL94V-0)
2.Impeller: Plastic(UL94V-0)
3.Bearing type: Sleeve Bearing & Dual Ball Bearing
4.Leadwire: UL1571AWG#28 or Equivalent (+): Red (-): Black
5.Motor: Impedence Protected and Reverse Polarity Protected
| Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| YM0502PVS(C)1 | 5 | 3.5 to 5.5 | 0.12 | 0.6 | 10000 | 2.20 | 0.16 | 27 | 5.00 |
| YM0502PVS(C)2 | 5 | 3.5 to 5.5 | 0.08 | 0.4 | 9000 | 1.98 | 0.14 | 24 | 5.00 |
| YM0502PVS(C)3 | 5 | 3.5 to 5.5 | 0.06 | 0.3 | 8000 | 1.76 | 0.13 | 22 | 5.00 |
| YM1202PVS(C)1 | 12 | 7.0 to 13.8 | 0.05 | 0.6 | 10000 | 2.20 | 0.16 | 27 | 5.00 |
| YM1202PVS(C)2 | 12 | 7.0 to 13.8 | 0.04 | 0.48 | 9000 | 1.98 | 0.14 | 24 | 5.00 |
| YM1202PVS(C)3 | 12 | 7.0 to 13.8 | 0.03 | 0.36 | 8000 | 1.76 | 0.13 | 22 | 5.00 |
