Home > Products > Brushless fan > Temperature Controlled Micro DC Fan 18x18x4mm
Temperature Controlled Micro DC Fan 18x18x4mm
- shenzhen
- Credit Card
You May Like
Product Details
| Electric Current Type | DC | Mounting | Other, cooling fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | ODM/OEM | Model Number | MX1804ANH5/ODM/OEM | |
| Voltage | 3.3V/5V | Power | 0.3w | |
| Air Volume | 0.30CFM-0.45CFM | Speed | 8500rpm-13000rpm | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV |
Product Description

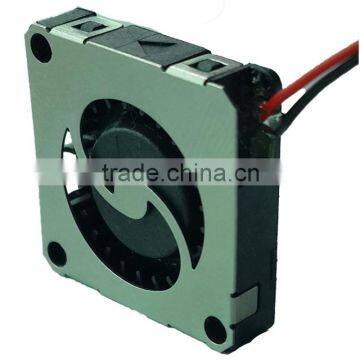

Temperature Controlled Micro DC Fan 18x18x4mm
Applications:
Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.
Description:
1. Brushless DC Fan, Axial DC Fan, DC Motor Fan, Cheap Fan, Portable Fan, CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
2. Various Size
3. High speed , Middle speed, Low speed
4. 5V DC 3.3V DC
5. Axially-grooved Bearing
6. Terminal or Lead wire
7. Waterproof explosion proof or high proof are can be satisfied.

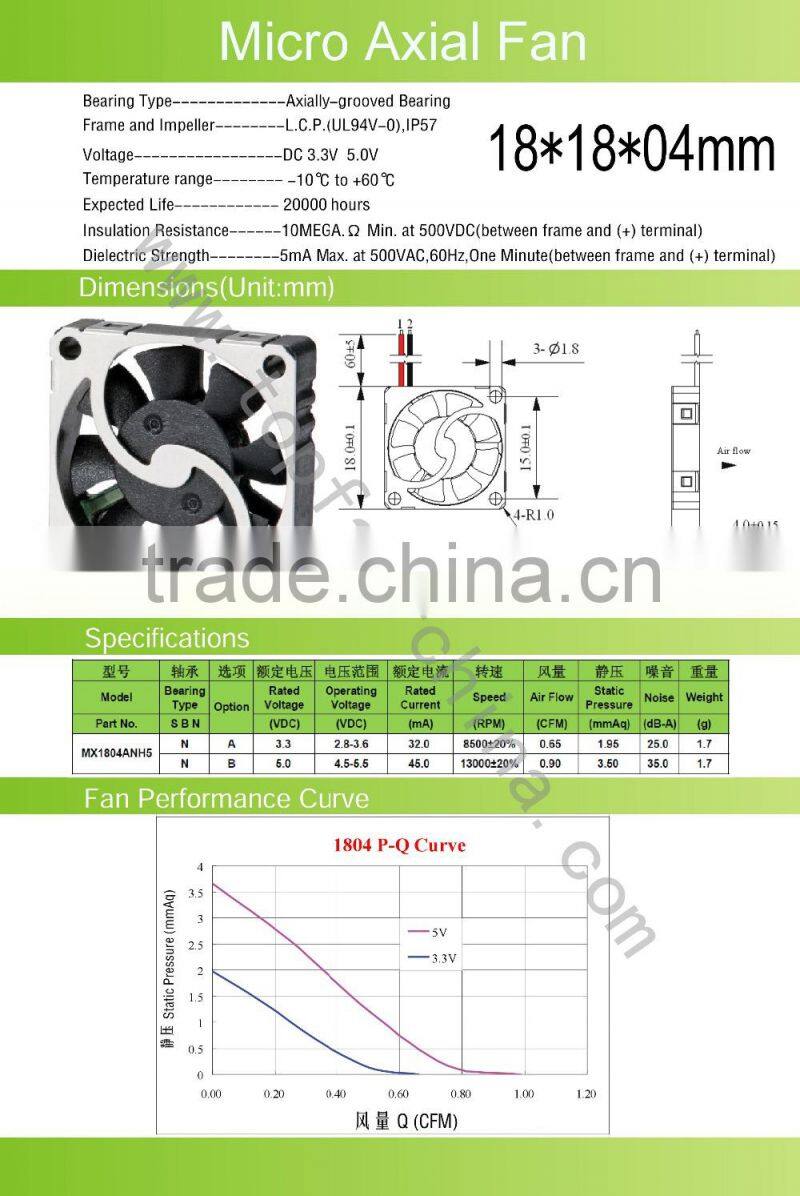

A: Specifications:
Bearing Type-------------Axially-grooved Bearing
Frame and Impeller--------L.C.P.(UL94V-0),IP57
Voltage-----------------DC 3.3V 5.0V
Temperature range-------- -10℃ to +80℃
Expected Life------------ 20000 hours
Insulation Resistance------10MEGA.Ω Min. at 500VDC(between frame and (+) terminal)
Dielectric Strength--------5mA Max. at 500VAC,60Hz,One Minute(between frame and (+) terminal)
Application:
Contact Us
- Shenzhen Topfan Technology Development Co., Ltd.
- Contact nametopfan- xiangzhi du Chat Now
- Phone86-0755-26070926
- Address23A2, Suhao Building, Nanxin Road, Nanshan District, Shenzhen, China, Shenzhen, Guangdong
